ATA CMP Development Progress

- UPDATED: Thursday, 9th June 2022 (Original post: Tuesday, 19th April 2022)

Product details: Docuneering S1000D ATA CMP

Development updates:

•	22nd April 2022	-	A few more screen shots
•	25th April 2022	-	ATA CMP Table of contents
•	27th April 2022	-	A busy start to the week
•	3rd May 2022	-	Getting close now!
•	4th May 2022	-	One for Star Wars Day: May the 4th Be With You
•	16th May 2022	-	It won't be long!
•	20th May 2022	-	Common Information Repository (CIR)
•	31st May 2022	-	Internal/External Linking and Table Numbering

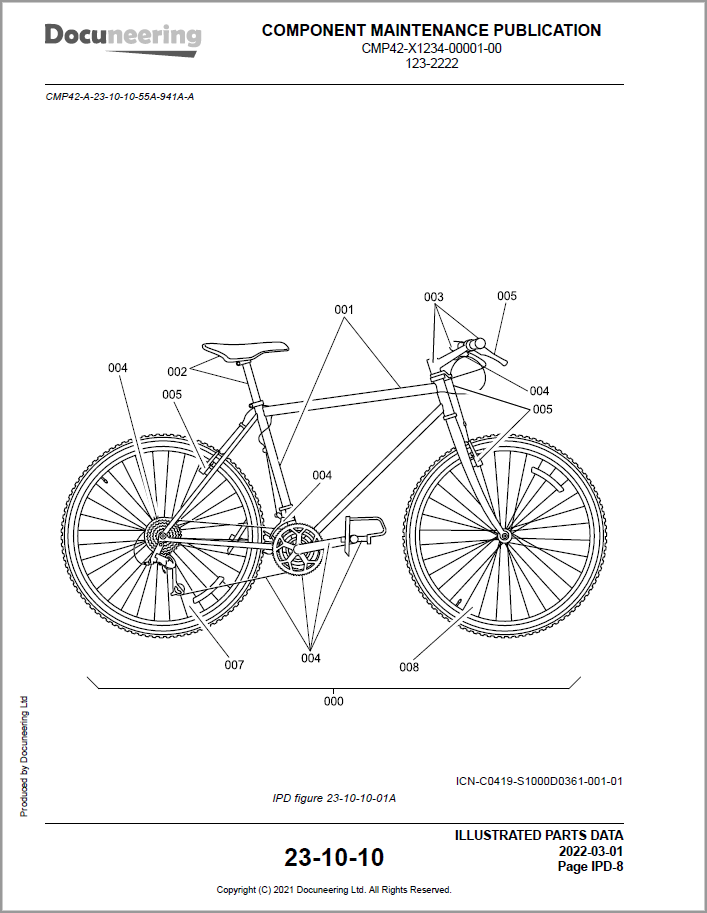

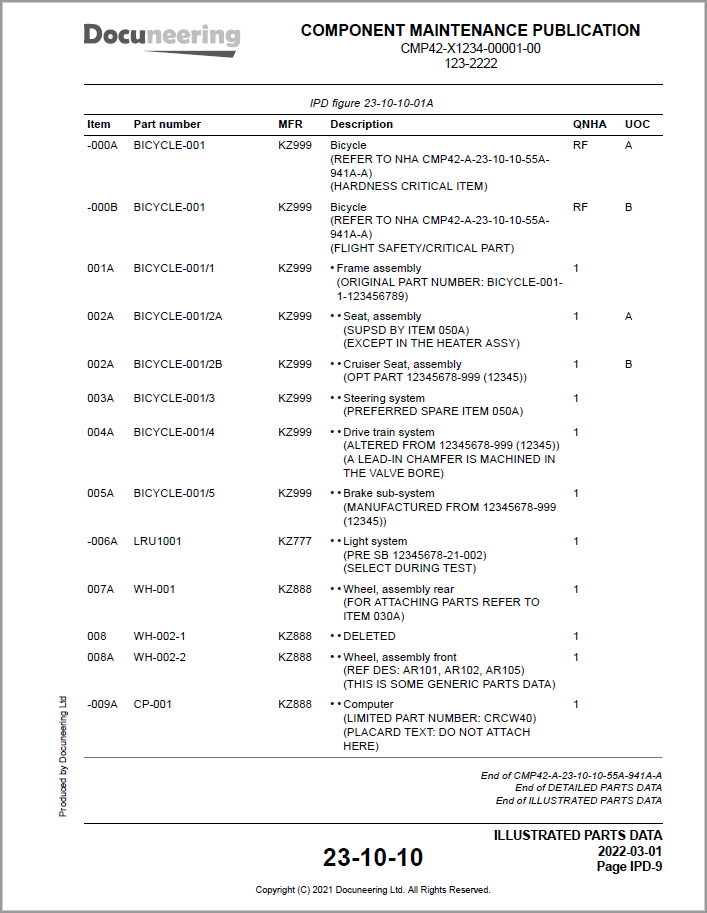

•	1st June 2022	-	Illustrated Parts Data
•	9th June 2022	-	Finishing touches

Docuneering is extending their S1000D Print & Publishing solutions into the Civil Aviation sector by including PDF output for the ATA Spec 1000BR Component Maintenance Publication (CMP).

Click image to enlarge

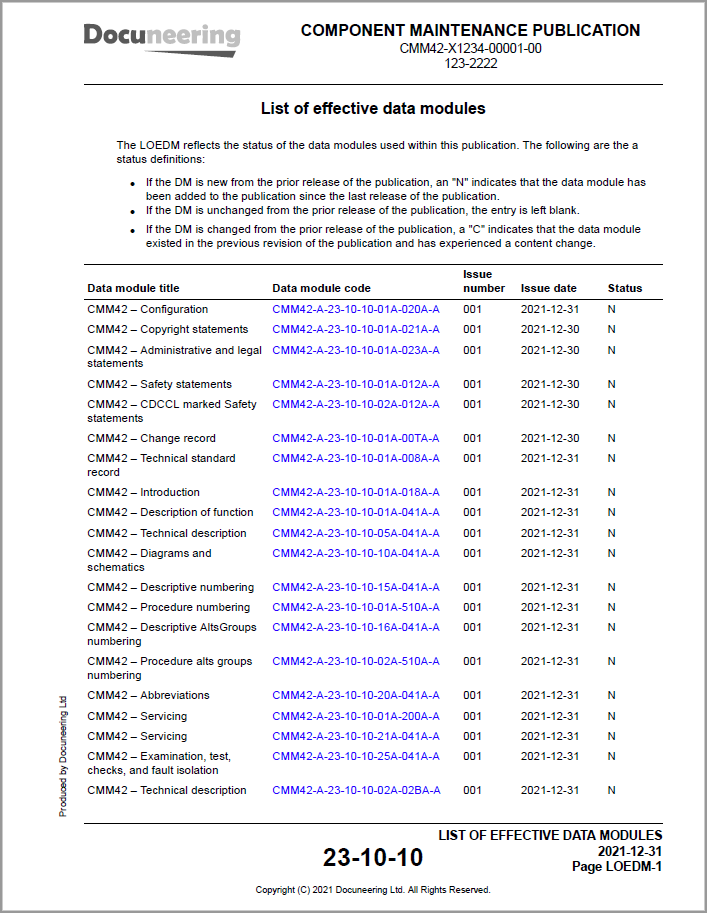

Docuneering - S1000D CMP - List of effective data modules

The stylesheets for this ATA CMP solution are written to the W3C XSL-FO standard and are published to PDF using the free and open-source Apache FOP print formatter.

We are also reviewing the process of converting an S1000D Publication Module into a CMP to implement a pure XSL delivery solution.

If you would like more information...

Get in touch

- UPDATE: Friday, 22nd April 2022

A few more screen shots

It's now all about the data ... lots and lots of test data:

Click image to enlarge

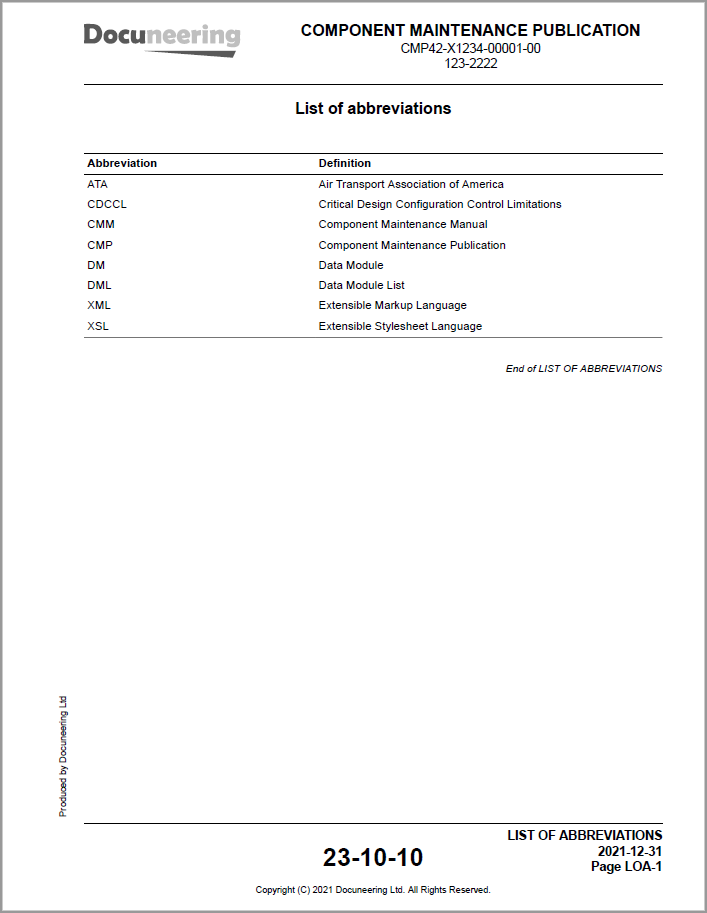

Docuneering - ATA CMP - List of abbreviations

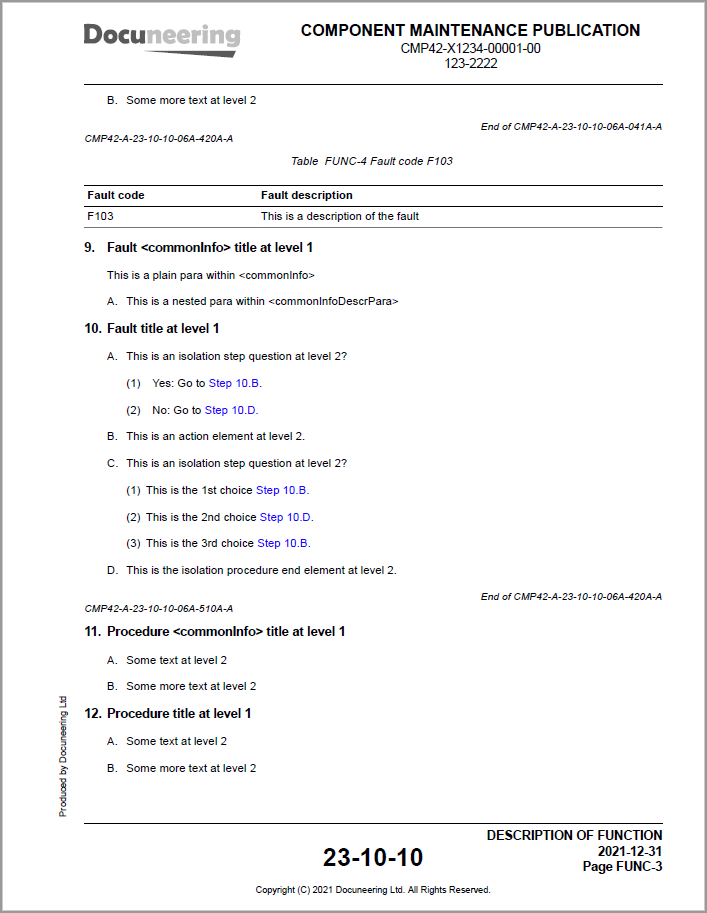

Docuneering - ATA CMP - Level 1 numbering

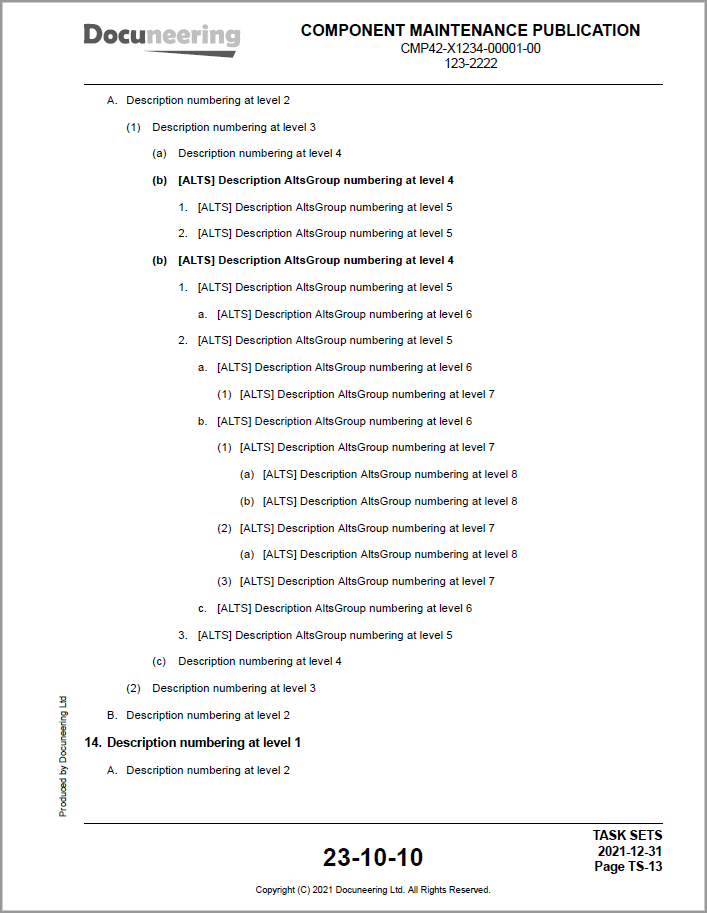

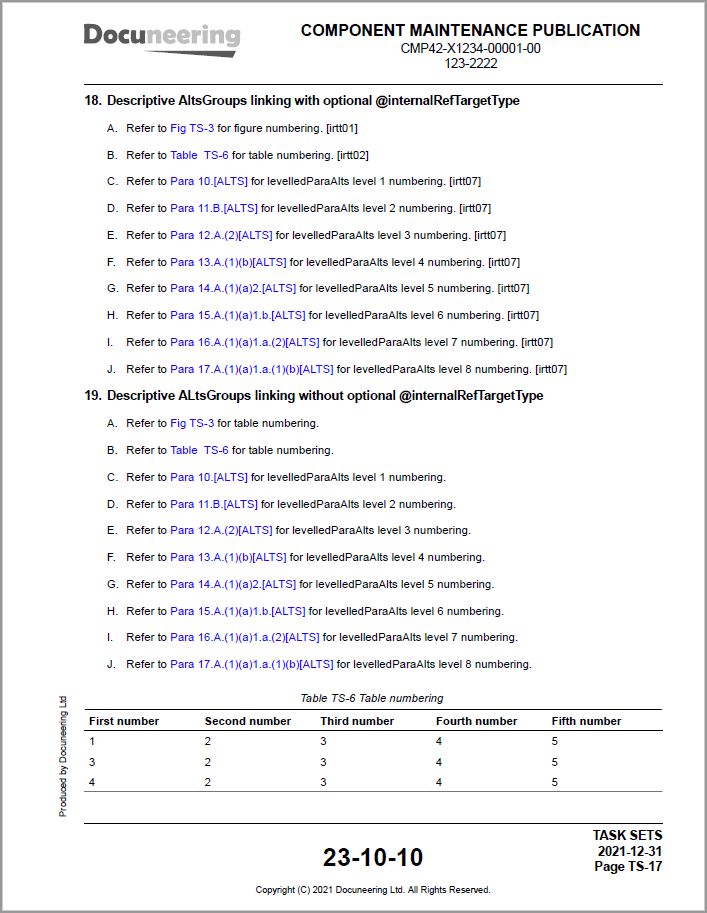

Docuneering - ATA CMP - Descriptive AltsGroups numbering

Docuneering - ATA CMP - Description AltsGroup numbering

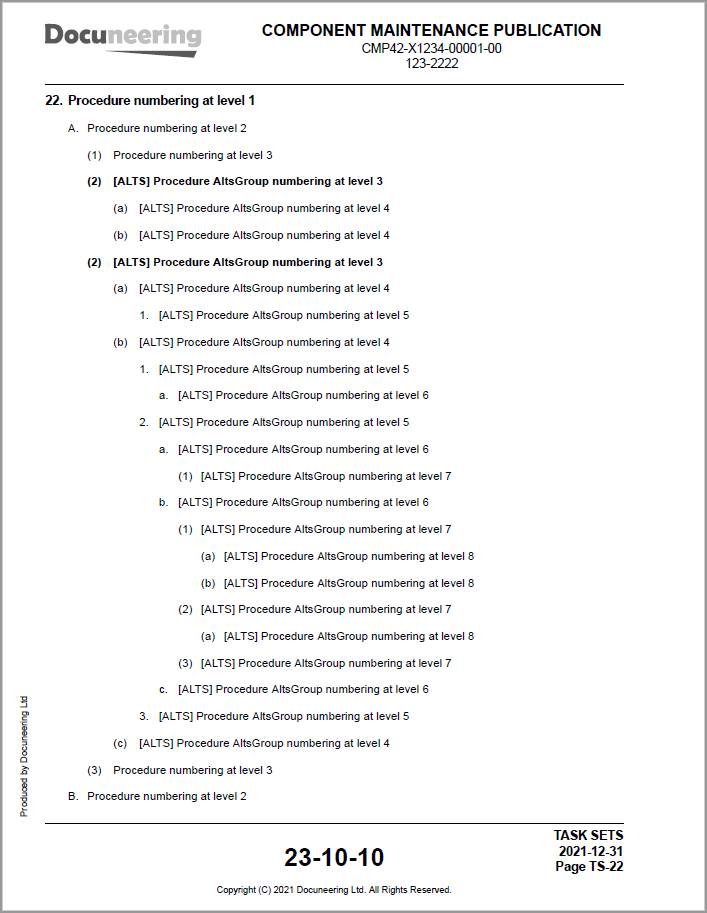

Docuneering - ATA CMP - Procedure AltsGroup numbering

- UPDATE: Monday, 25th April 2022

ATA CMP Table of contents

A bit of a pain with the Table of contents as you need the contents to build into a table. Made a good start but we will continue to work on this as we create more test data:

Click image to enlarge

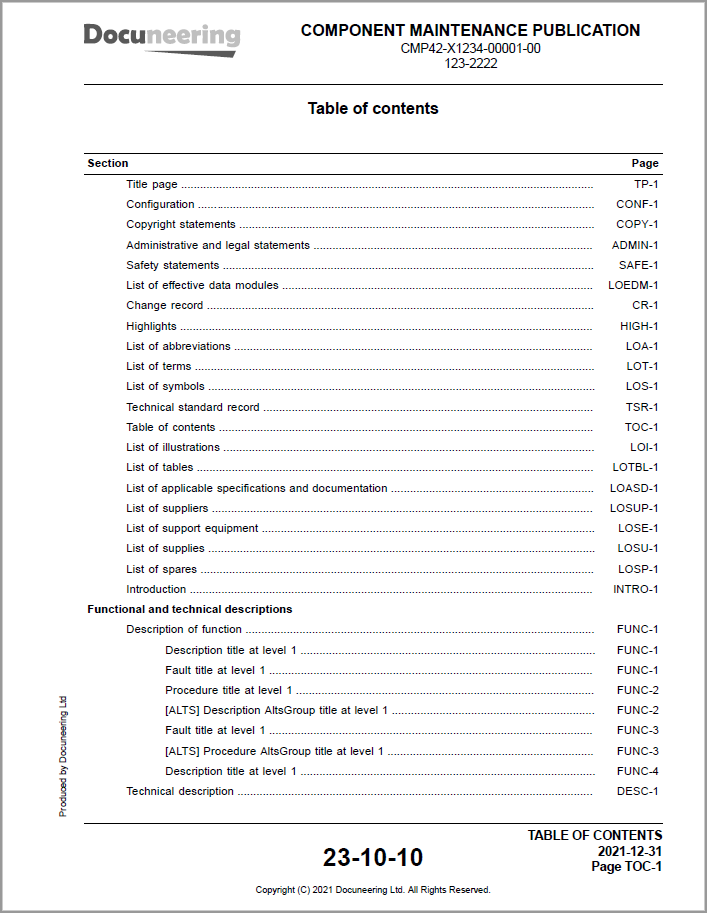

Docuneering - ATA CMP - Table of contents

- UPDATE: Wednesday, 27th April 2022

A busy start to the week

First two screen shots are a "standard build" method but the List of suppliers is using the Common Information Repository (CIR) to lookup the Suppliers details:

Click image to enlarge

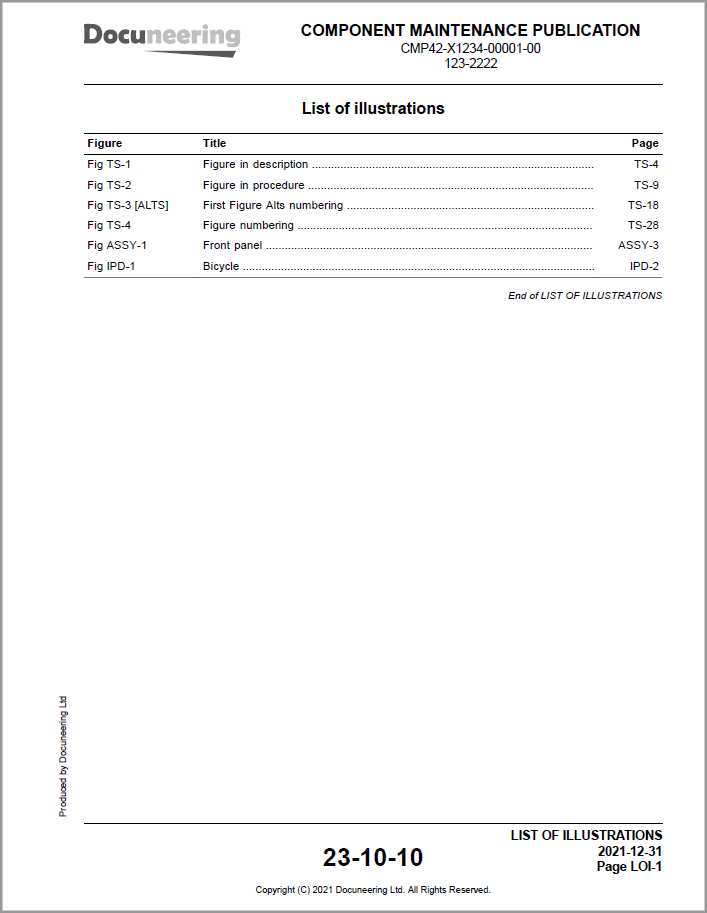

Docuneering - ATA CMP - List of illustrations

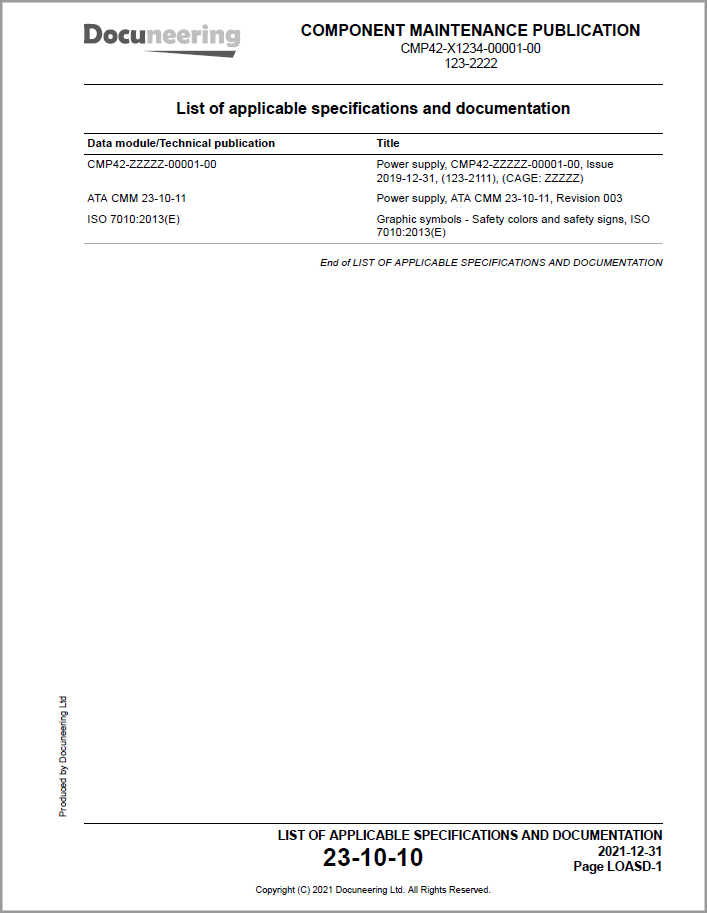

Docuneering - ATA CMP - List of applicable specifications and documentation

Docuneering - ATA CMP - List of suppliers

Also spent a bit of time reviewing the ATA CMP PDF bookmarks.

If there is only a single Data Module in a Topic then the bookmark links directly to that Data Module. If there are multiple Data Modules within a Topic, the bookmark will link to the first Data Module but the bookmark will also have a sub-level which lists all of the Data Modules included in the Topic.

- UPDATE: Tuesday, 3rd May 2022

Getting close now!

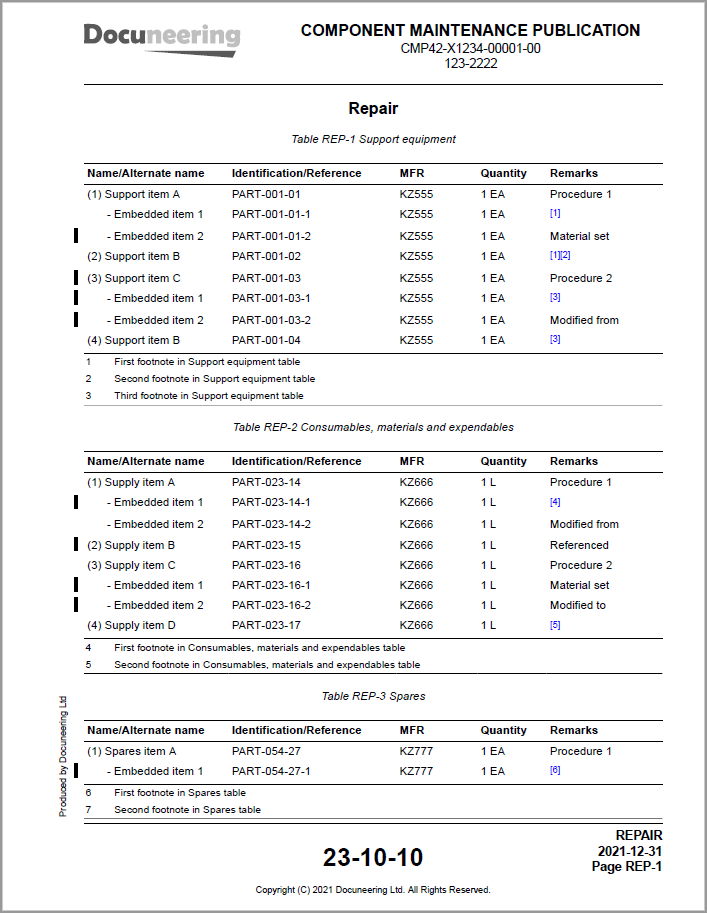

Footnotes are configured at the Topic level and create a continuous count from start to finish.

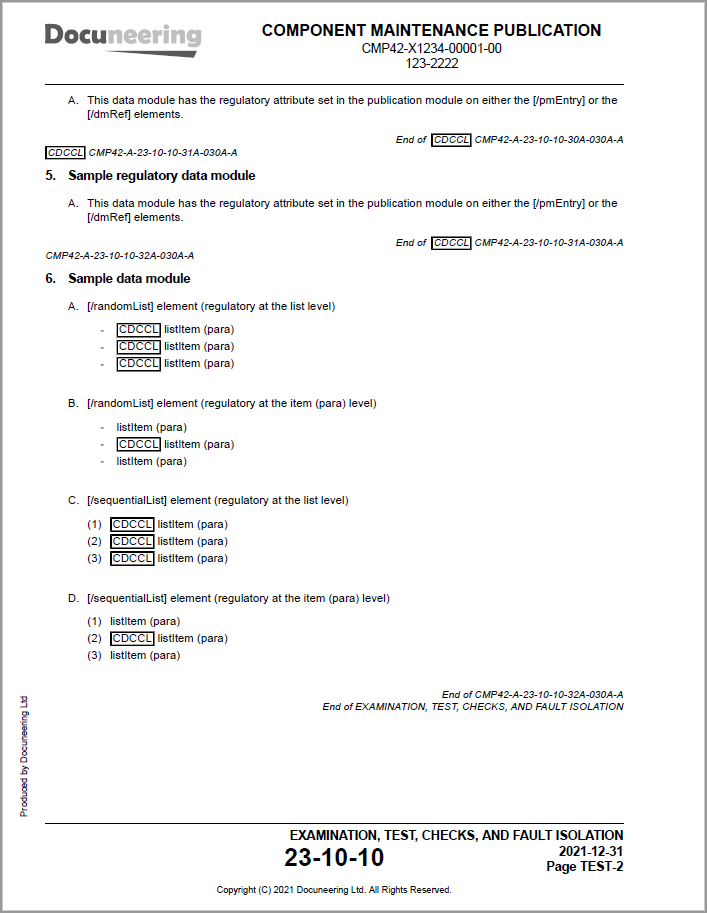

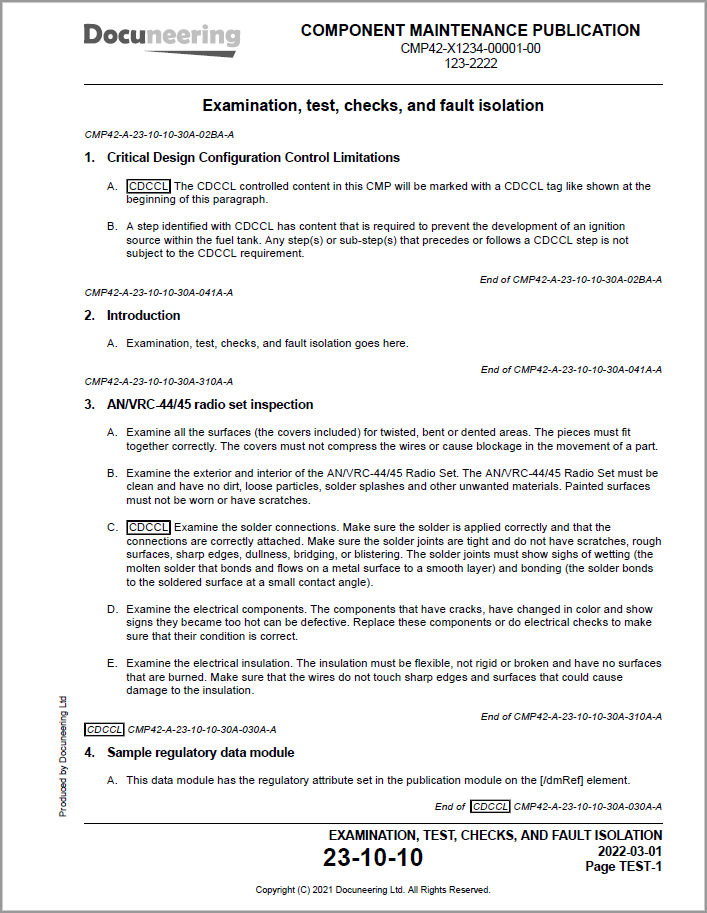

Top level CDCCL marking can be included at the data module or even the Topic level by marking the publication module <pmEntry> element:

Click image to enlarge

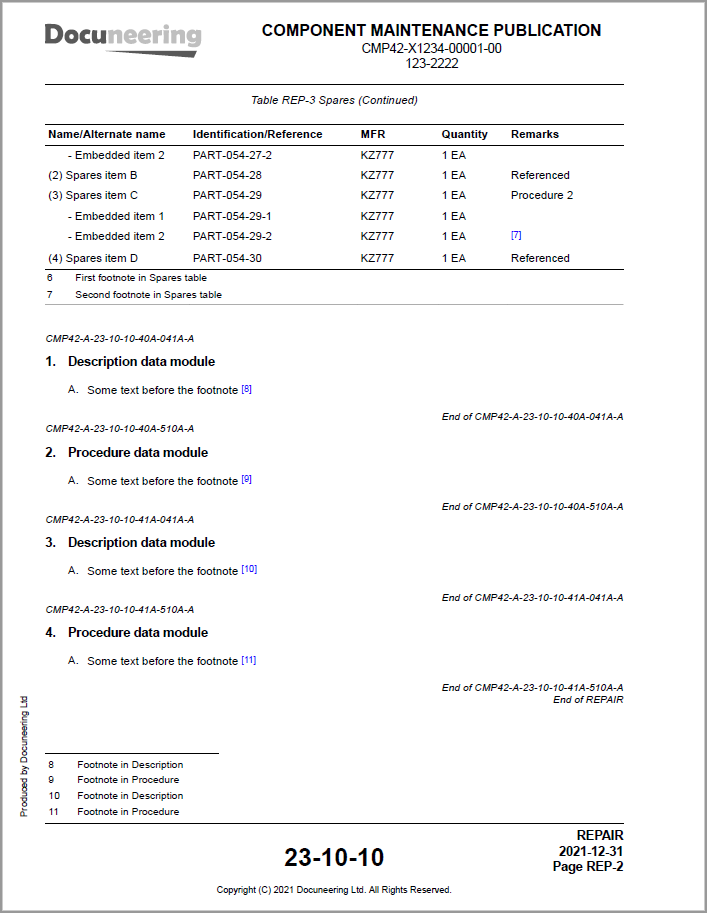

Docuneering - ATA CMP - Footnotes in the Preliminary Requirements

Docuneering - ATA CMP - Footnotes at Topic level

- UPDATE: Wednesday, 4th May 2022

One for Star Wars Day: May the 4th Be With You

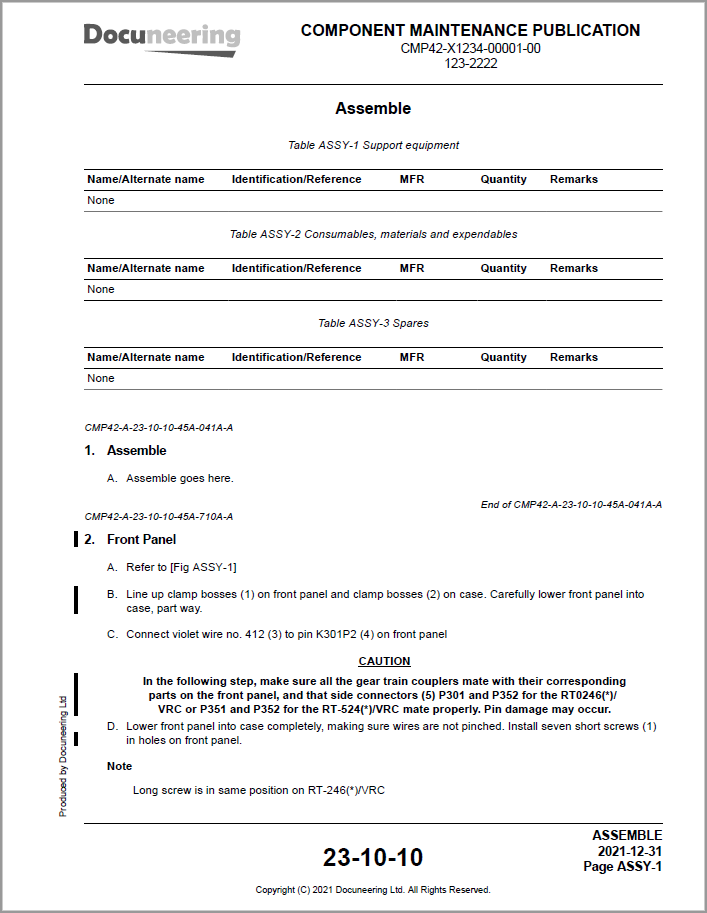

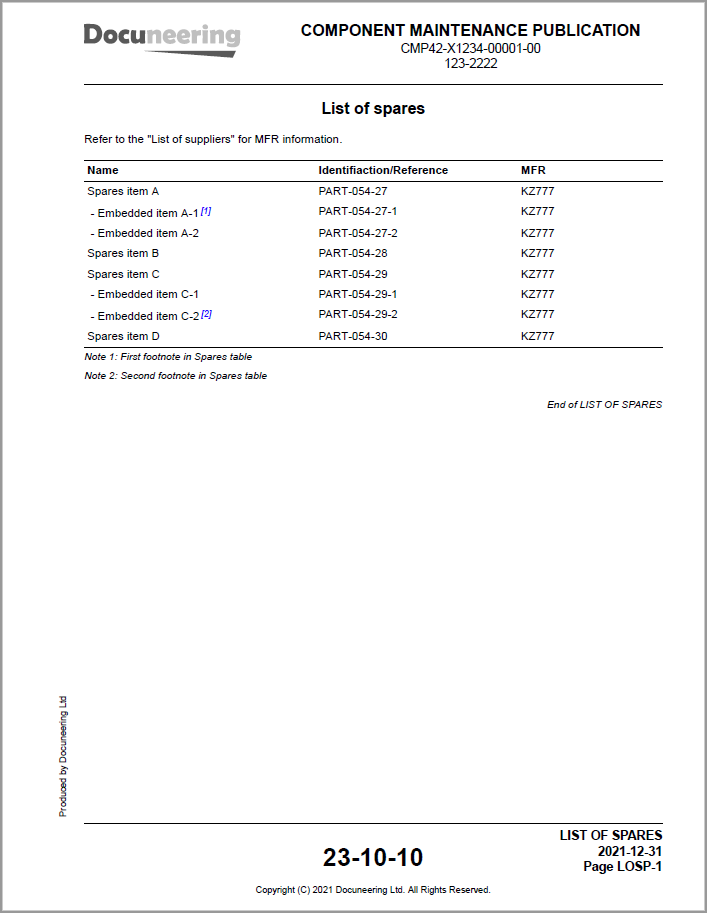

List of support equipment, List of supplies and List of spares...

Click image to enlarge

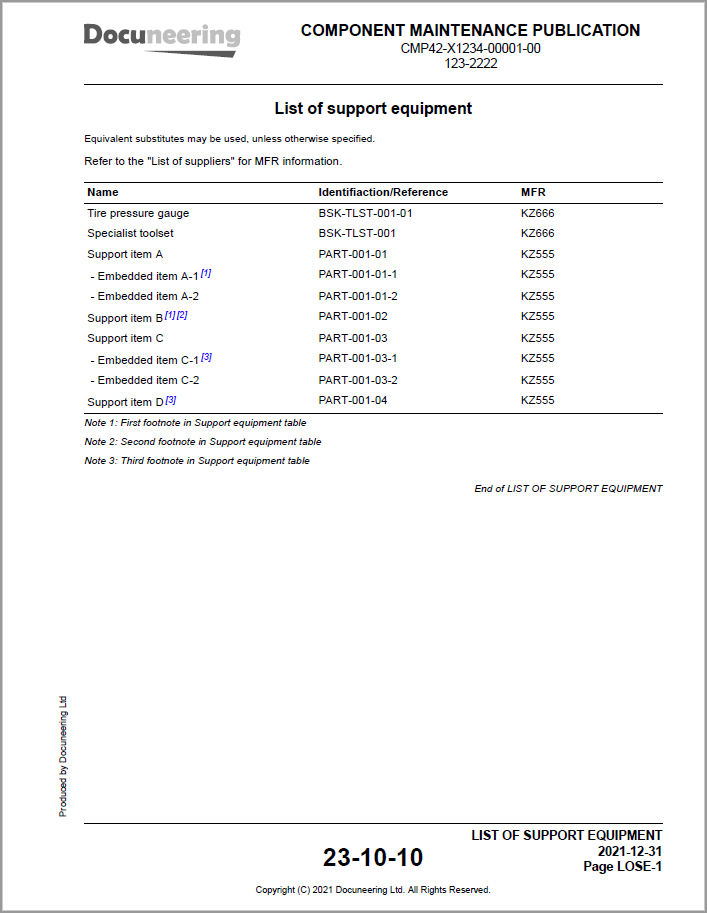

Docuneering - ATA CMP - List of support equipment (LOSE)

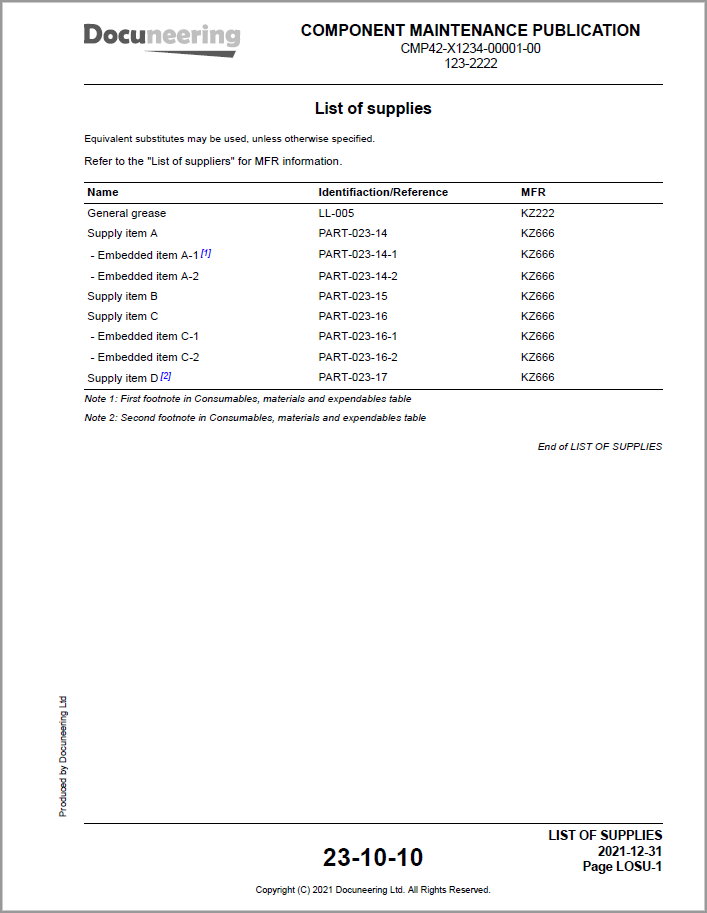

Docuneering - ATA CMP - List of supplies

- UPDATE: Monday, 16th May 2022

It won't be long!

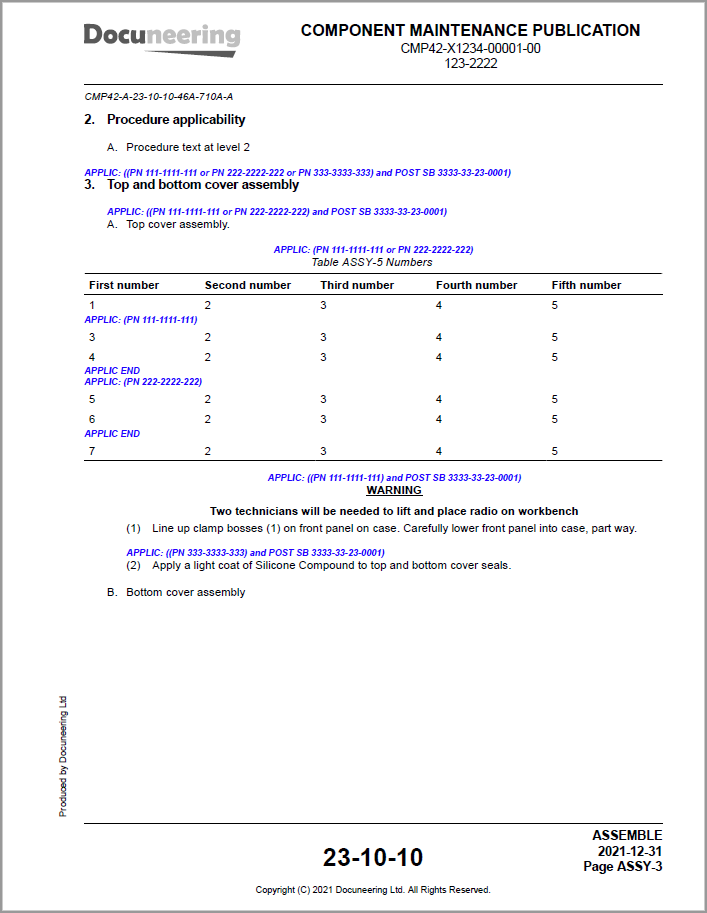

S1000D applicability, illustration handling and the IPD Numerical index...

Click image to enlarge

Docuneering - ATA CMP - Illustration linking in procedure

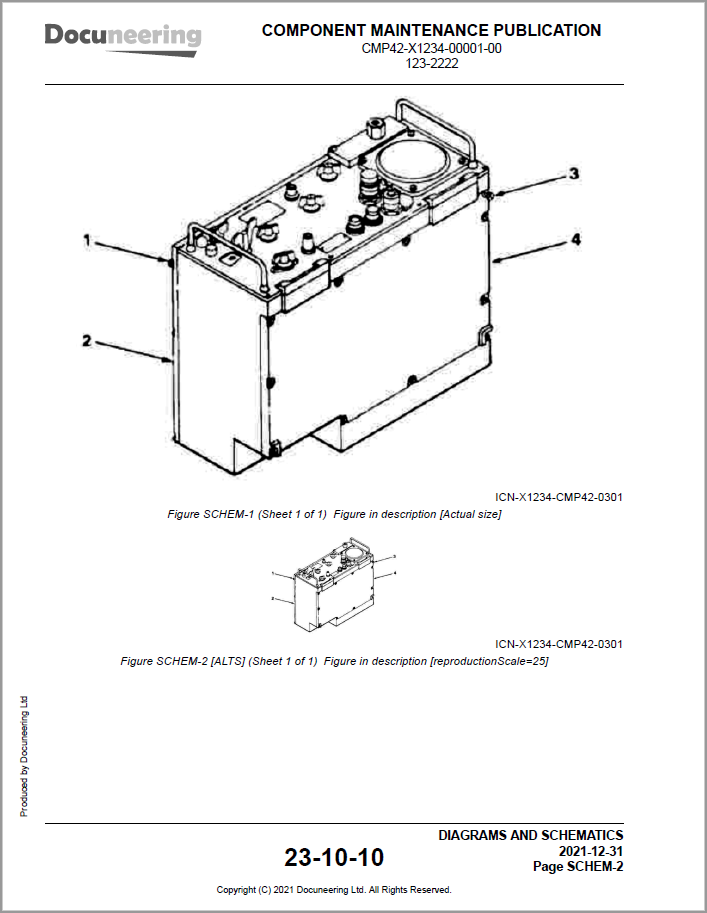

Docuneering - ATA CMP - Illustration reproductionScale

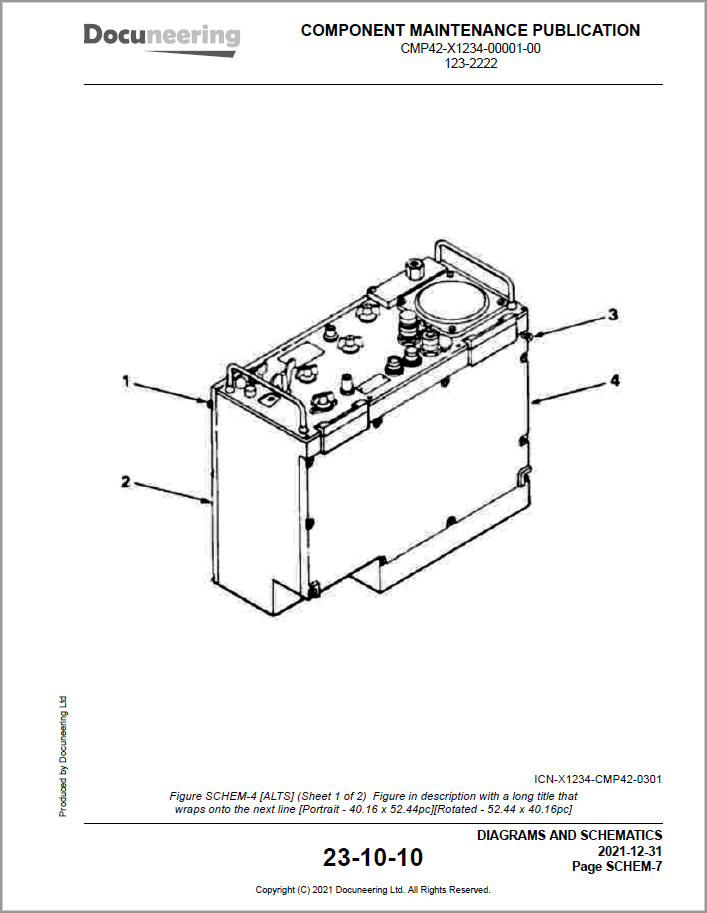

Docuneering - ATA CMP - Illustration portrait

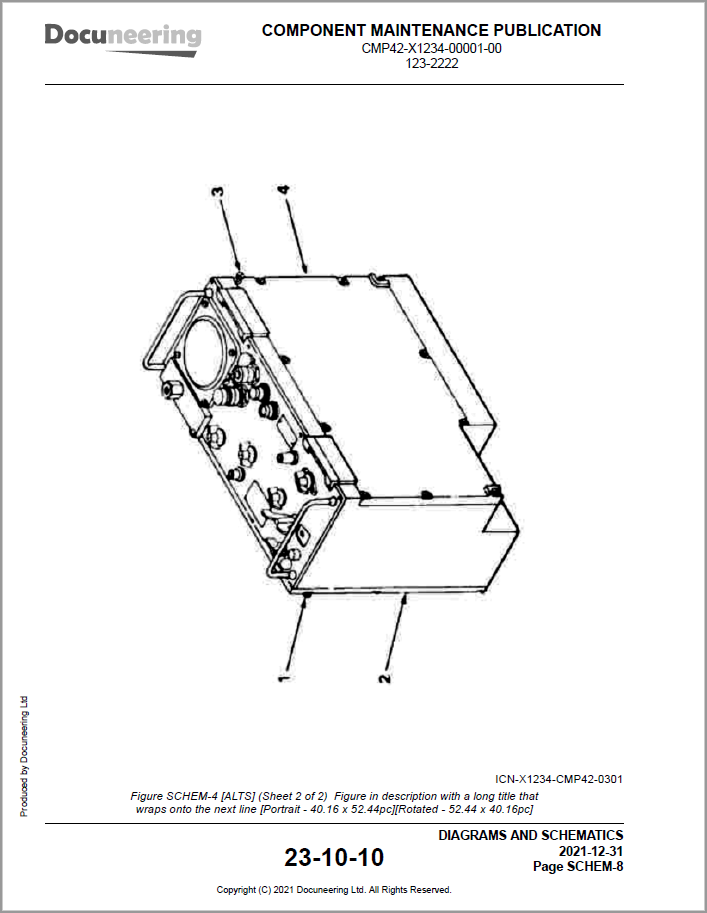

Docuneering - ATA CMP - Illustration rotated

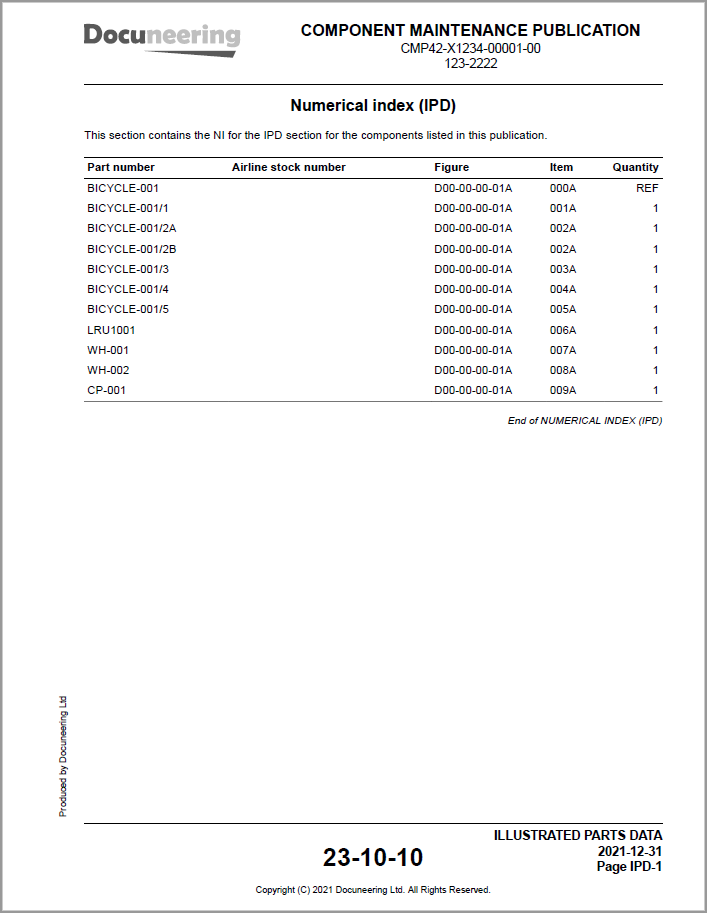

Docuneering - ATA CMP - Numerical index (IPD)

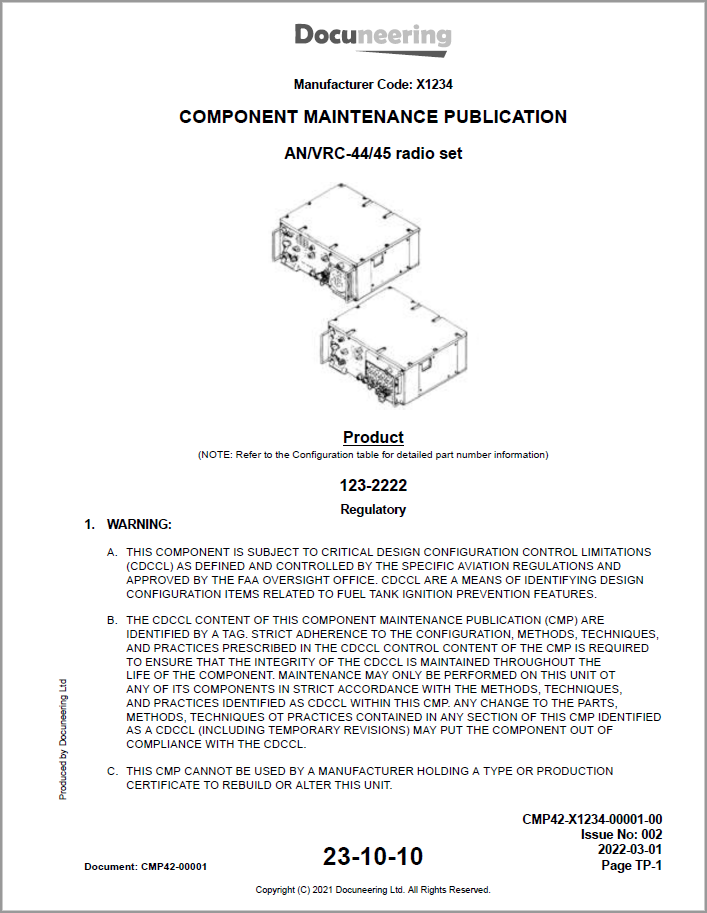

Docuneering - ATA Spec 1000BR CMP - Preliminary Requirements

- UPDATE: Friday, 20th May 2022

Common Information Repository (CIR)

CIR linking from the fault and procedure data modules through to the Warning repository [infoCode="0A4"] and the Caution repository [infoCode="0A5"] ...

Click image to enlarge

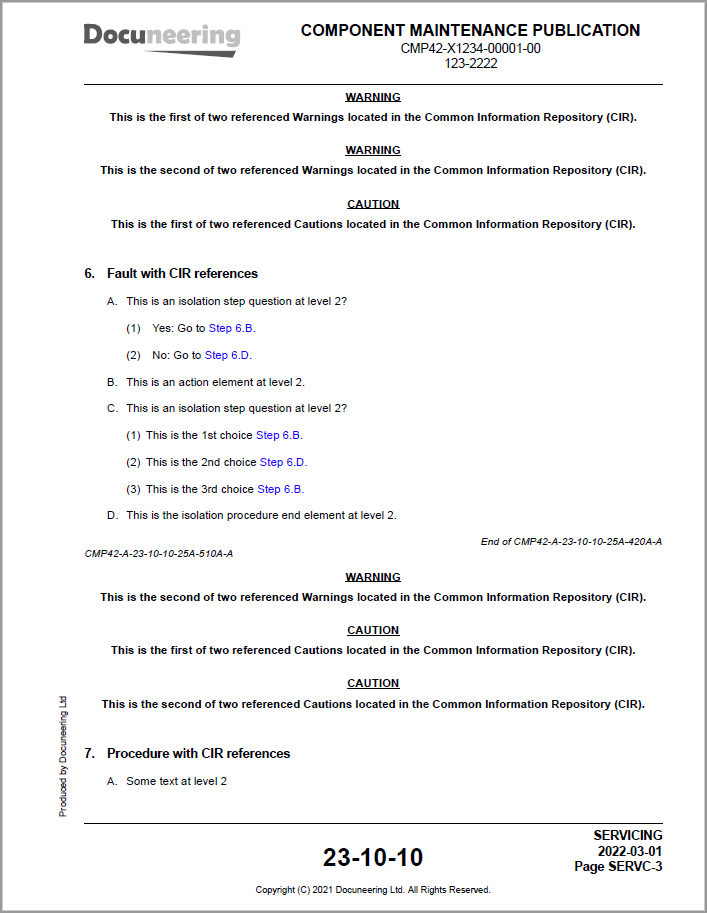

Docuneering - ATA CMP - CIR Warning and Caution refs

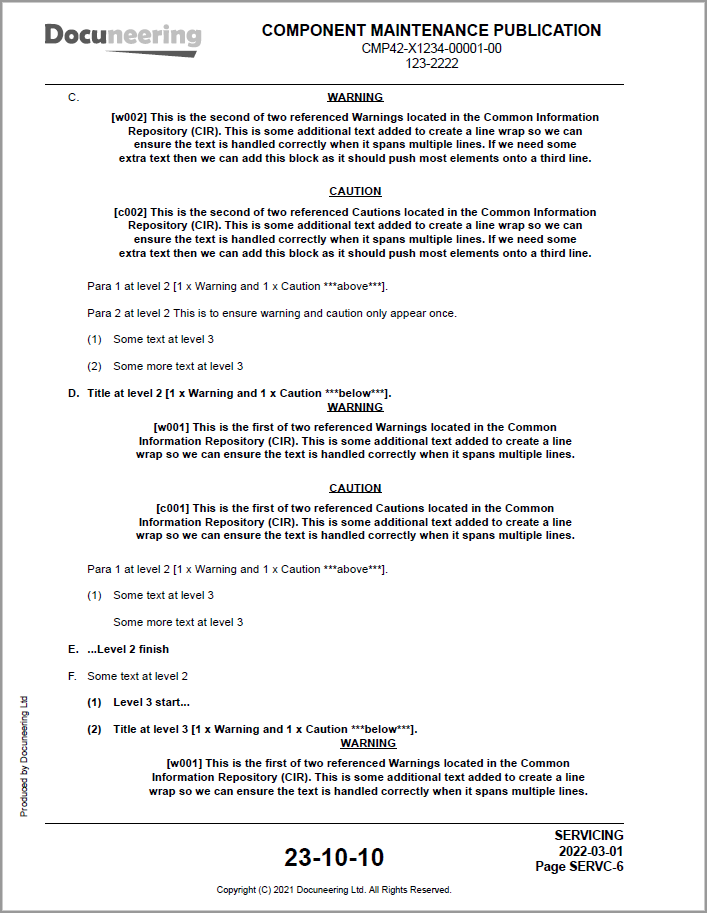

Docuneering - ATA CMP - CIR Procedure Warning and Caution refs

- UPDATE: Tuesday, 31st May 2022

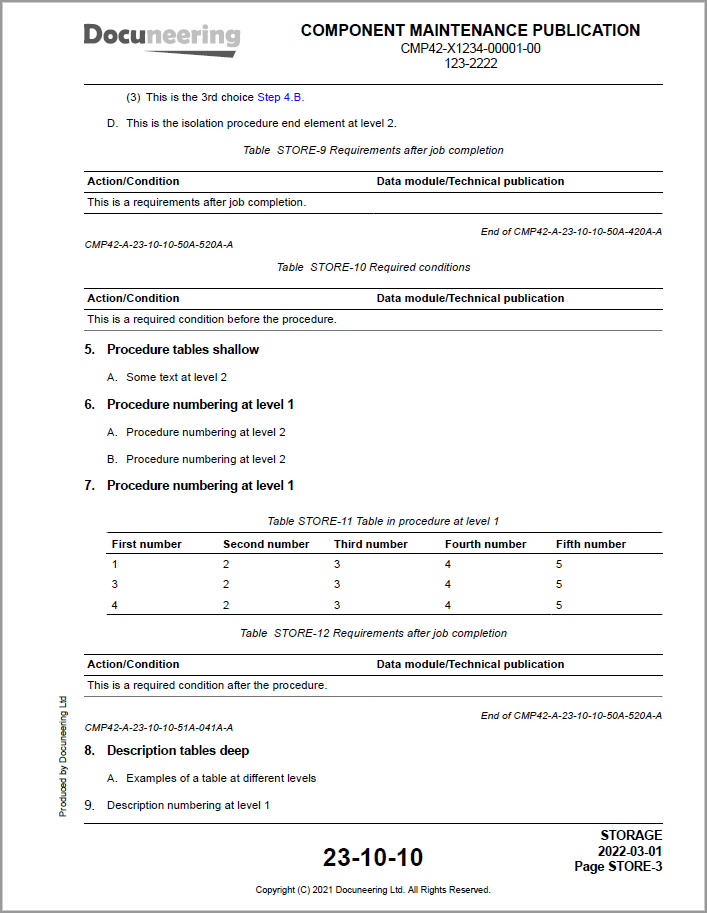

Internal/External Linking and Table Numbering

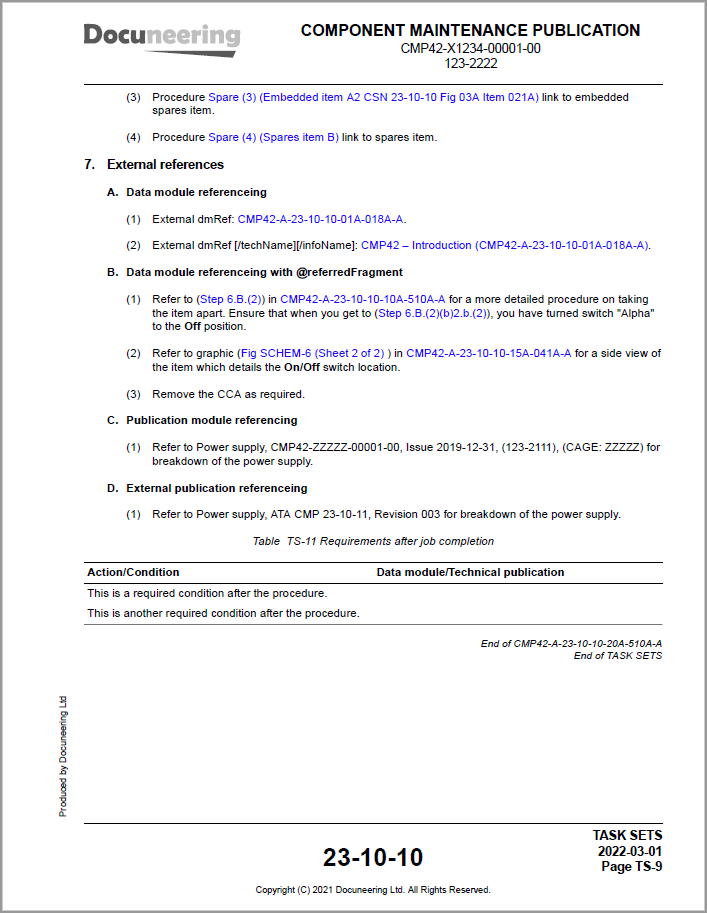

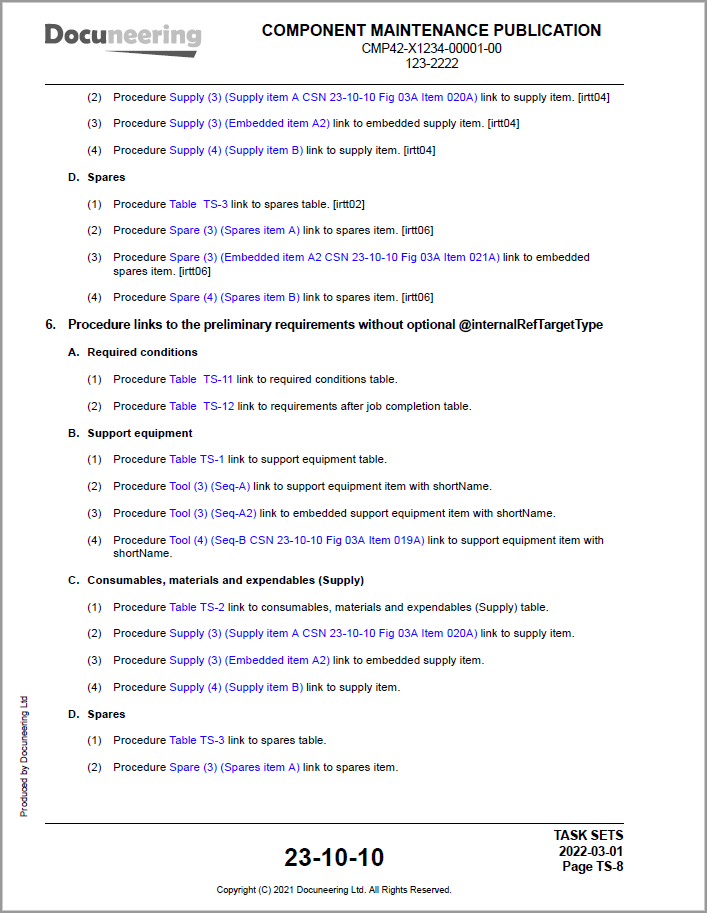

Internal links to items within the same data module and external linking from data module to data module and data module to inside another data module using the @referredFragment attribute...

Click image to enlarge
