S1000D - Airplane Flight Manual (GAMA Spec No. 1)
- Tuesday, 21th May 2024
⇦ S1000D AFM to PDF - Product Page.
Docuneering is currently extending its S1000D Print & Publish solutions in the Civil Aviation sector to include PDF output for the Airplane Flight Manual (AFM).
(Click image to enlarge)

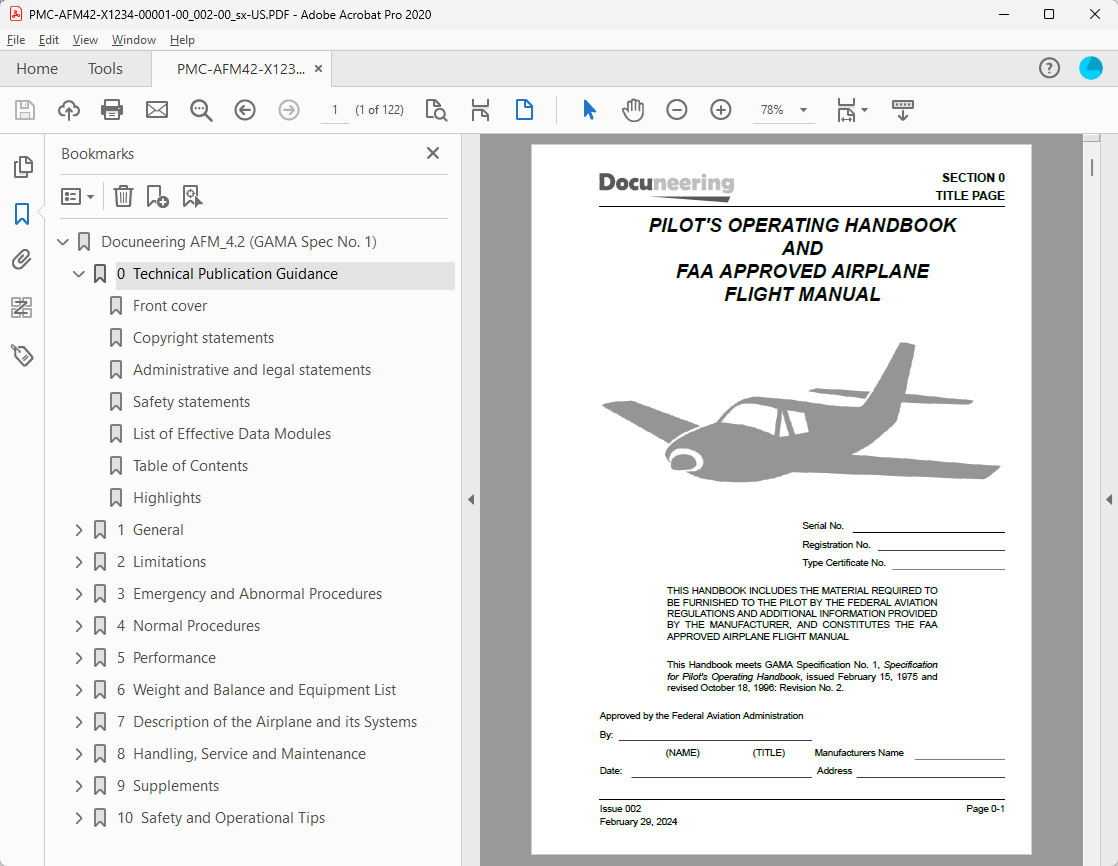

S1000D - Airplane Flight Manual - Title Page
Front Matter
The Front Matter contained in the AFM is made up of both Authored Data Modules and Auto-generated content.
Front matter - Authored Data Modules
(Click image to enlarge)

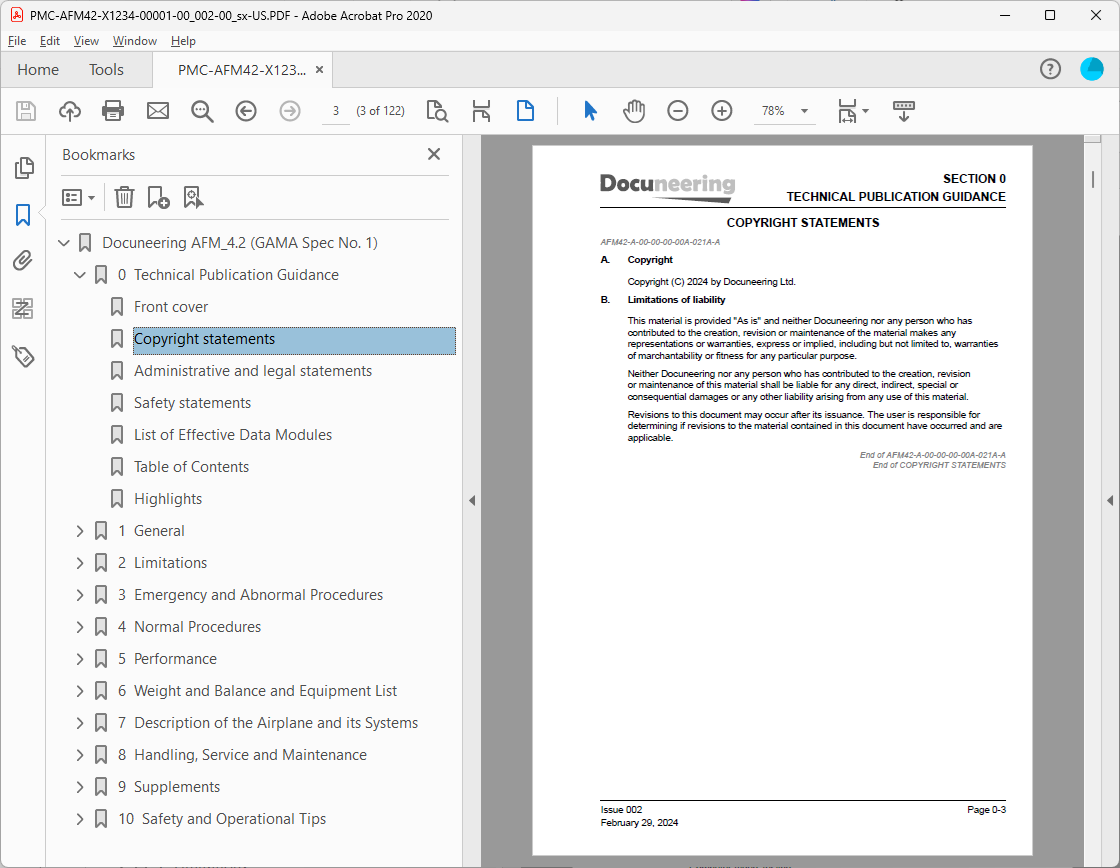

Copyright Statement

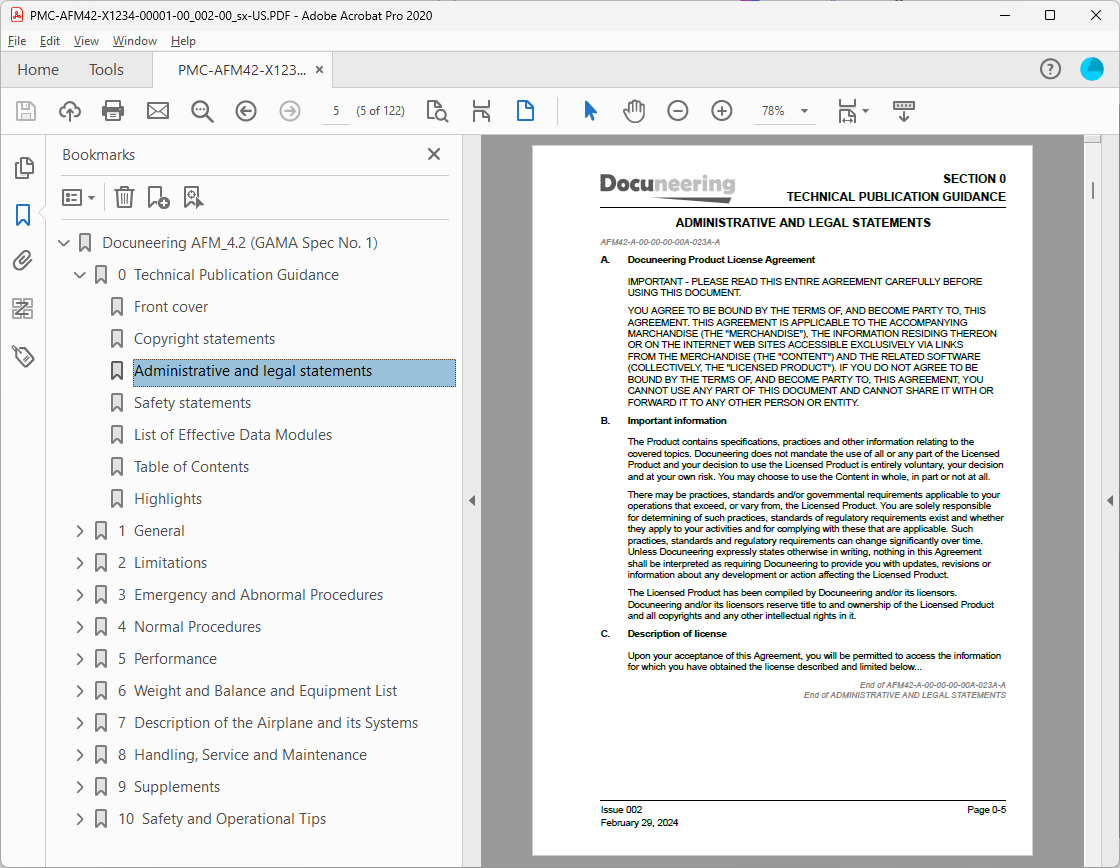

Administrative and Legal Statements

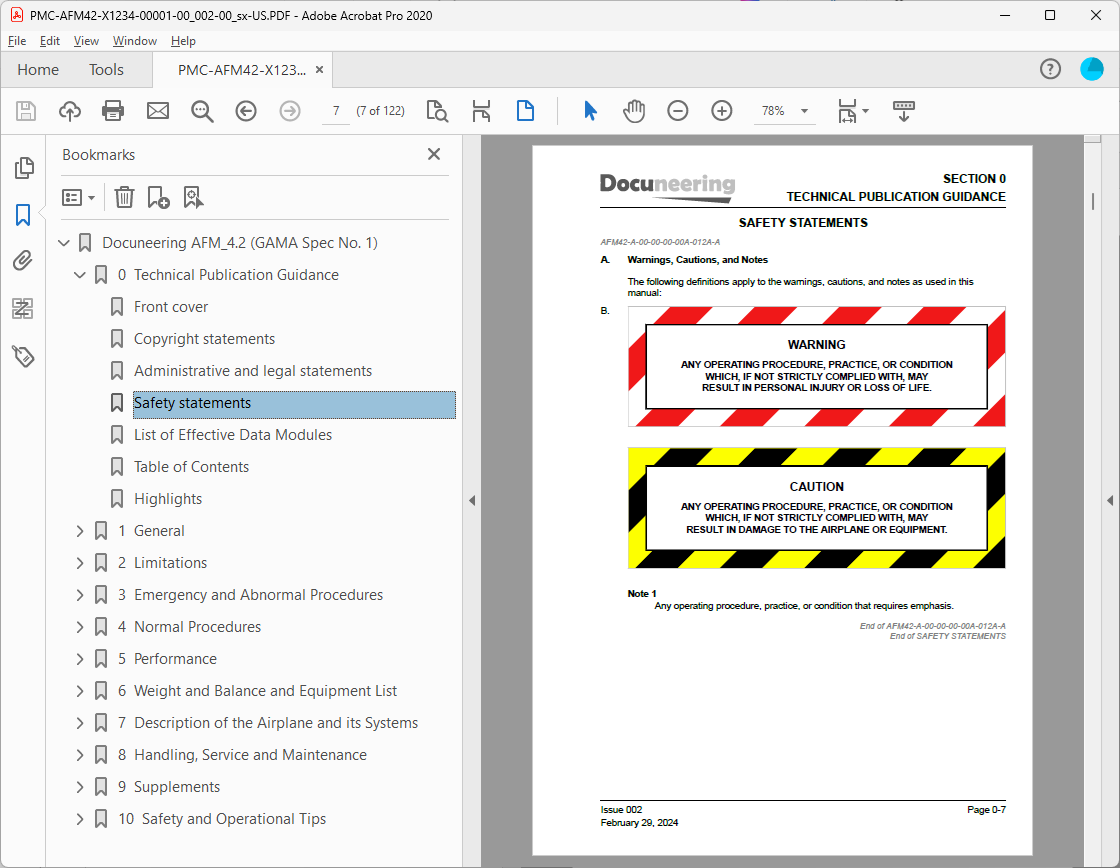

Safety Statements
Front matter - Auto-generated Content
(Click image to enlarge)

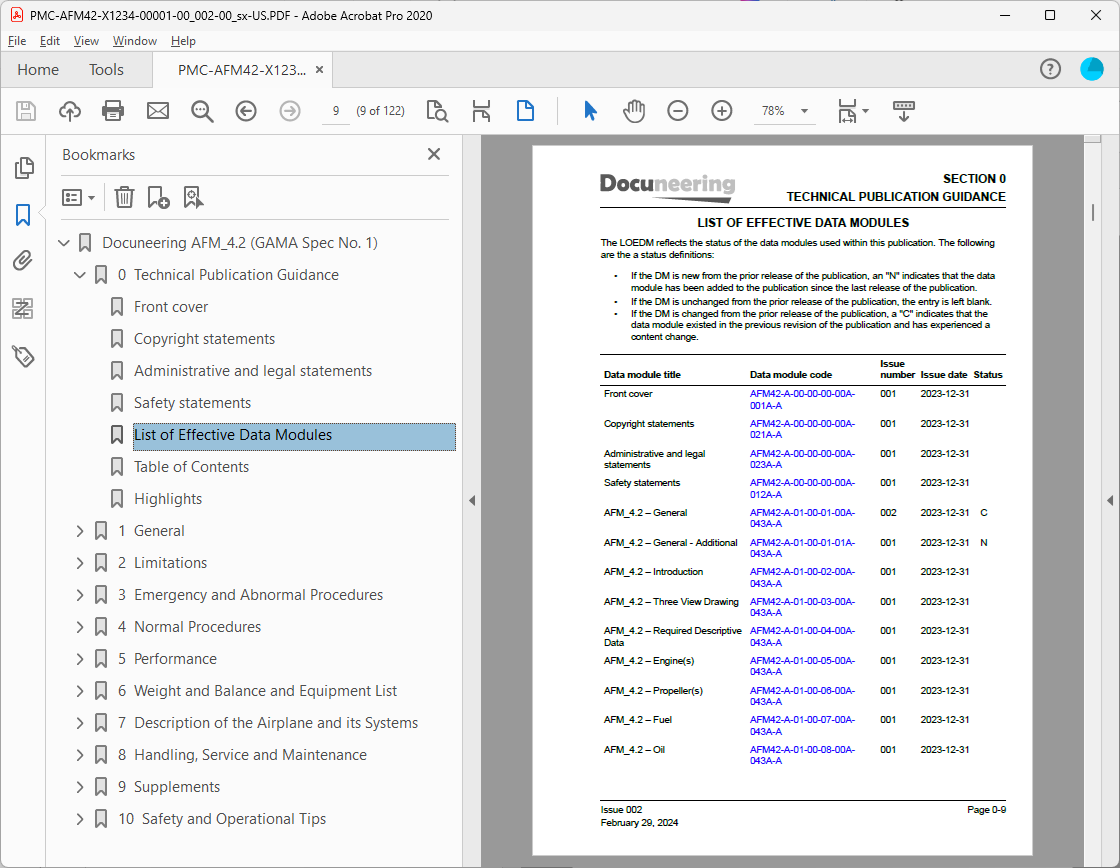

List of Effective Data Modules

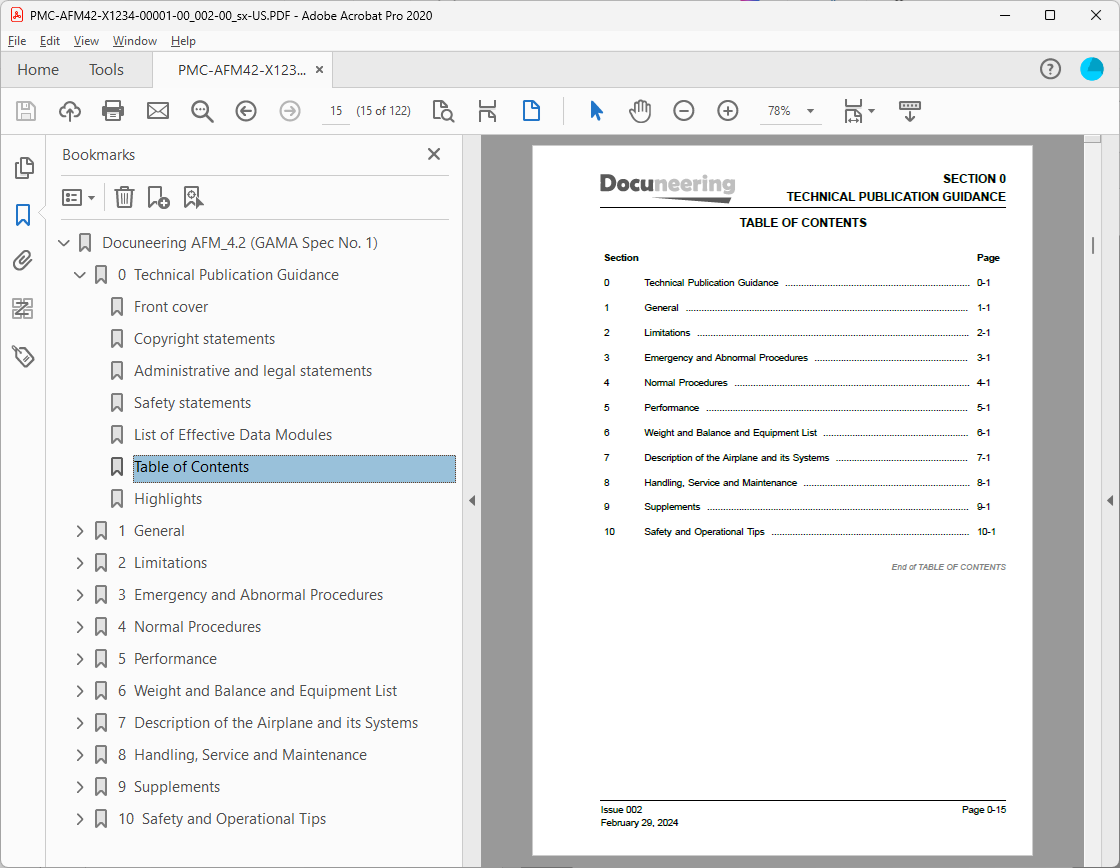

Table of Contents

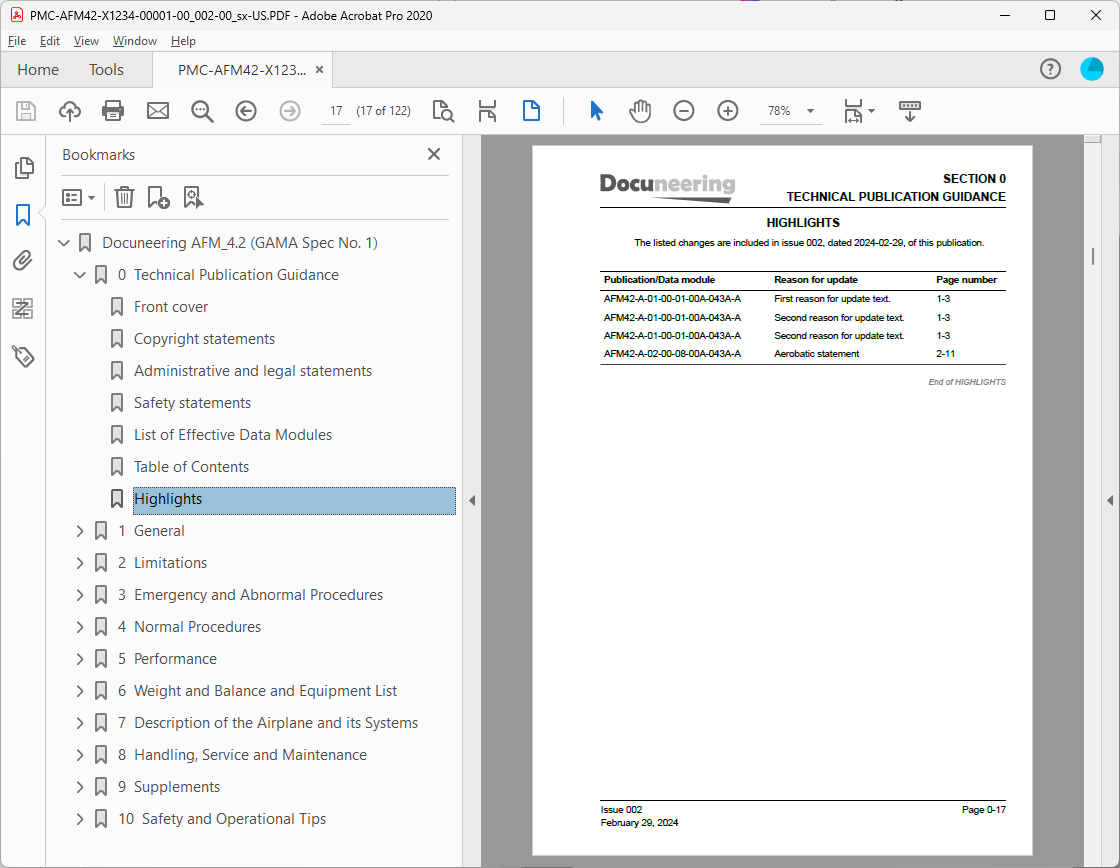

Highlights
GAMA Spec No.1 Layout
S1000D Issue 4.2 Data Modules are formatted to comply with the General Aviation Manufacturers Association (GAMA) Specification No. 1 layout.
(Click image to enlarge)

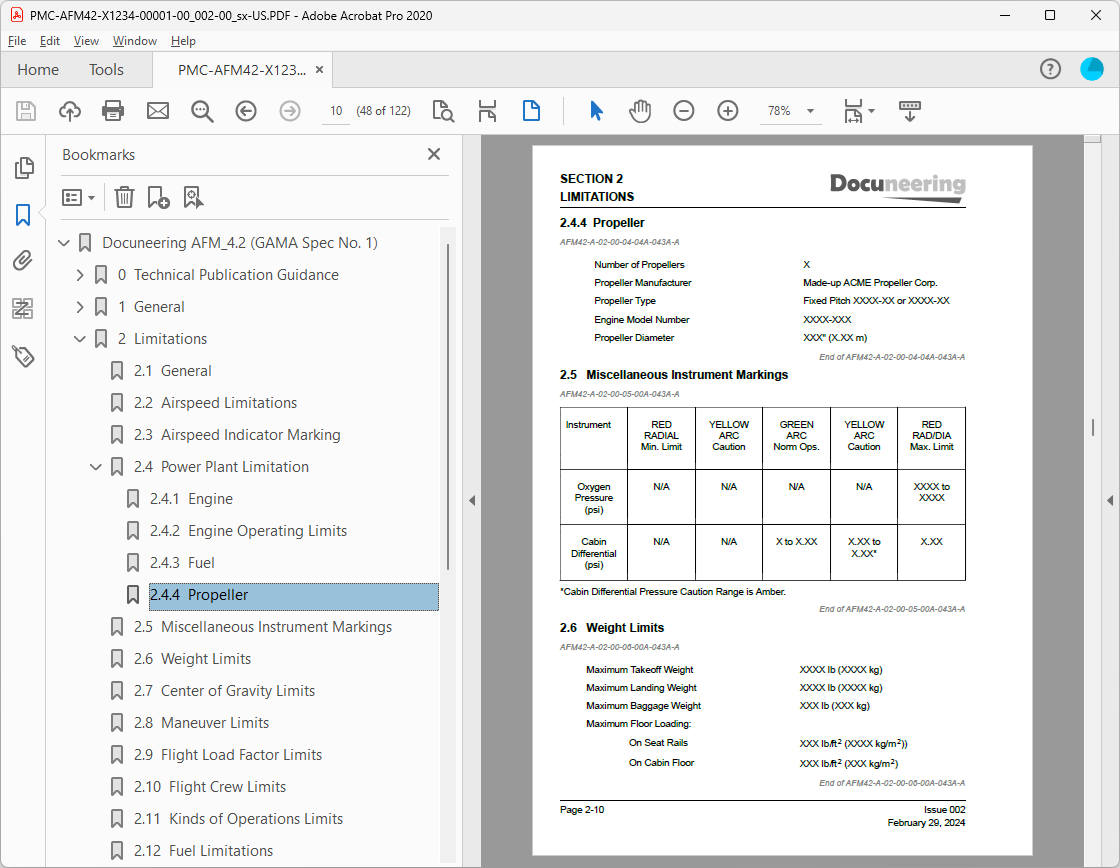

S1000D - Airplane Flight Manual - Descriptive Data

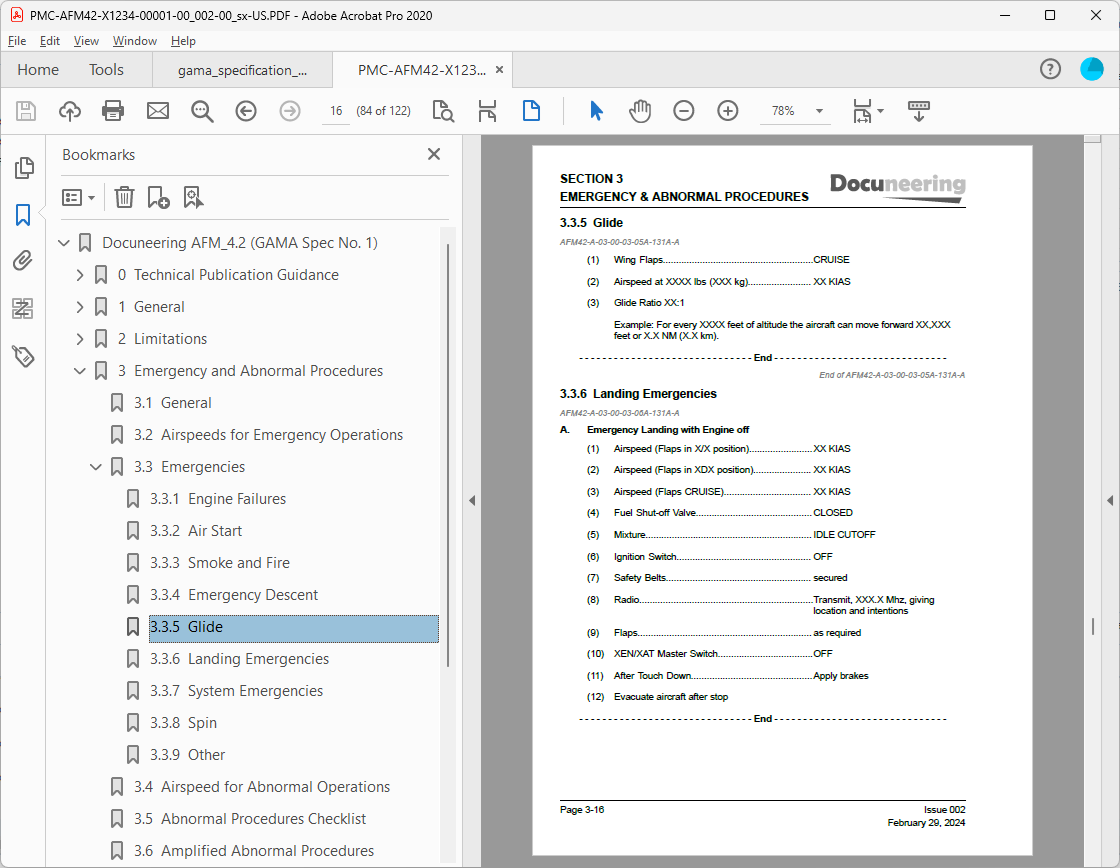

Emergency procedures are presented in a Challenge and Response layout.
(Click image to enlarge)
S1000D - Airplane Flight Manual - Emergency Procedures
First Level Paragraph Numbering
Due to the granular nature of S1000D, it is sometimes necessary to include multiple Data Modules in a single sub-section.
Where multiple Data Modules are used, the first level of paragraph numbering will continue in sequence with the next Data Module. This numbering sequence does not restart until a new sub-section begins.
(Click image to enlarge)

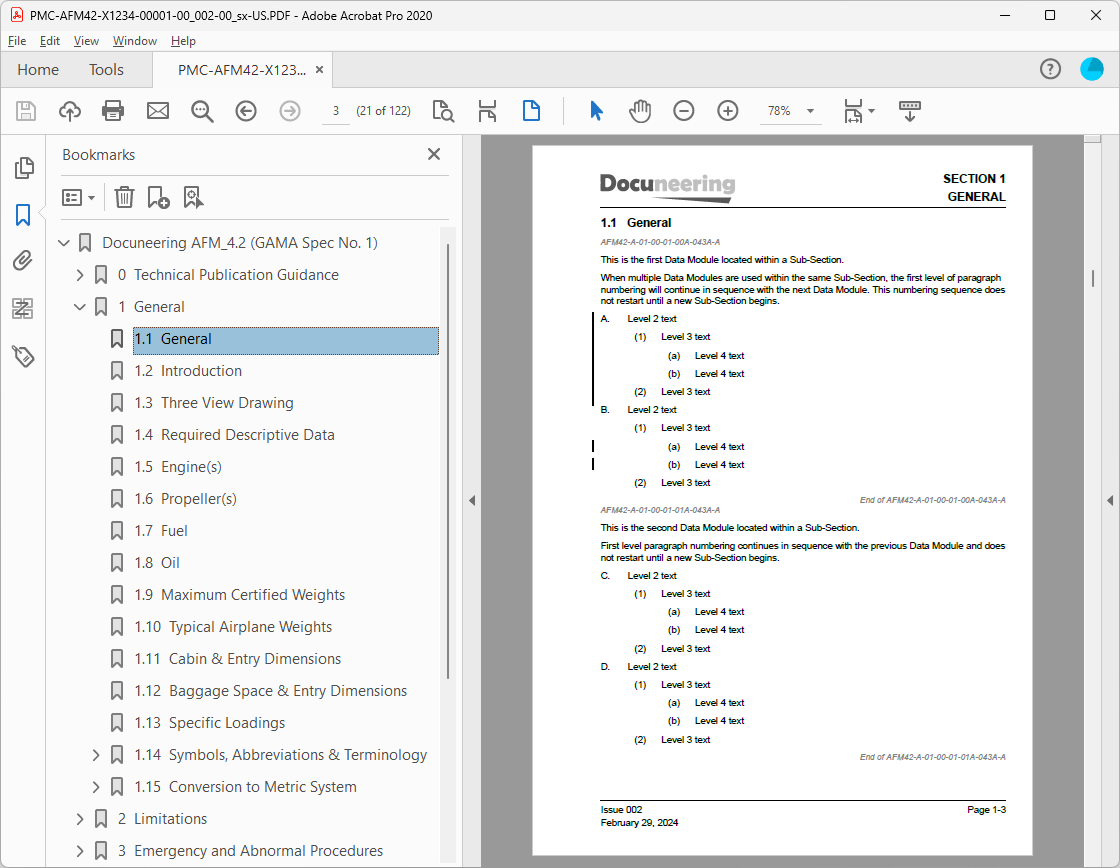

S1000D - Airplane Flight Manual - First level numbering - Descriptive Data

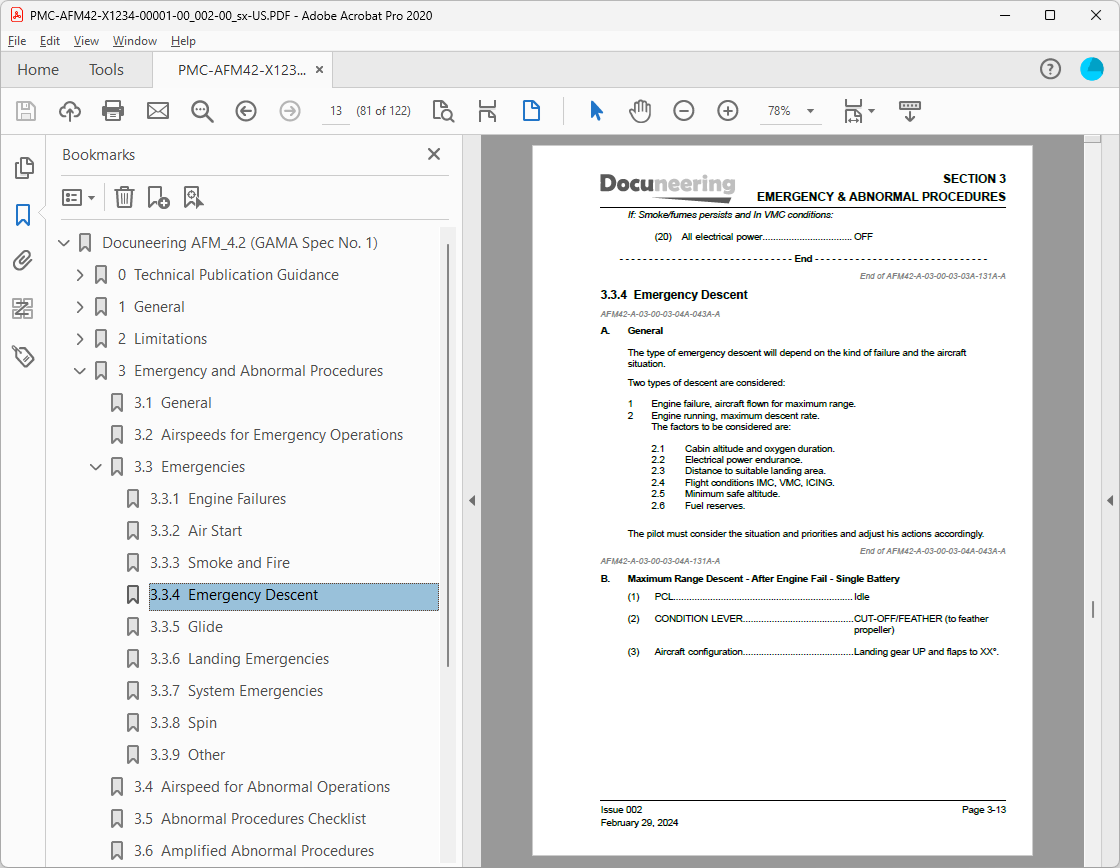

Emergency procedures with a descriptive section will also follow the first level numbering sequence rule.
(Click image to enlarge)
S1000D - Airplane Flight Manual - First level numbering - Emergency Procedures
S1000D Illustration Handling
The following S1000D illustration sizes are supported in the AFM:
- A5 Full Page - (120mm x 157mm)
- A5 Half Page - (120mm x 78mm)
- A5 Flexi - (120mm x 30mm through to 120mm x 145mm)
- A5 Full Page - Landscape - (orientated) - (157mm x 120mm)
- A5 Fold out - (254mm x 157mm)
- A4 Full Page - (170mm x 222mm) - (auto-resized for A5)
- A4 Half Page - (170mm x 111mm) - (auto-resized for A5)
- A4 Flexi - (170mm x 45mm through to 170mm x 210mm) - (auto-resized for A5)
- A4 Full Page - Landscape - (orientated) - (222mm x 170mm) - (auto-resized for A5)
- A4 Fold out - (360mm x 222mm) - (auto-resized for A5)
(Click image to enlarge)

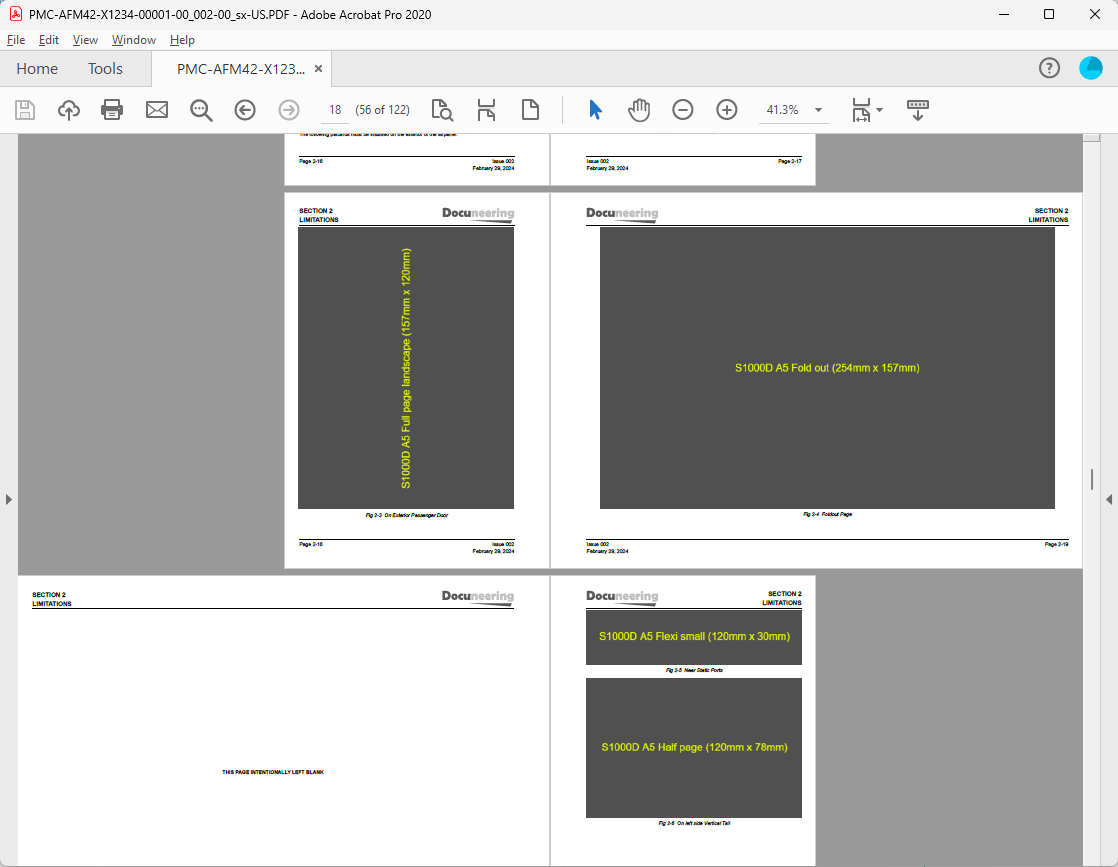

S1000D - Airplane Flight Manual - Illustrations
PDF Download
We are still in the process of creating TEST data for the AFM and as such, our PDF is incomplete. Once we have a more complete PDF file, we will make it available for the community to review.
