Illustrated Parts Data (IPD)

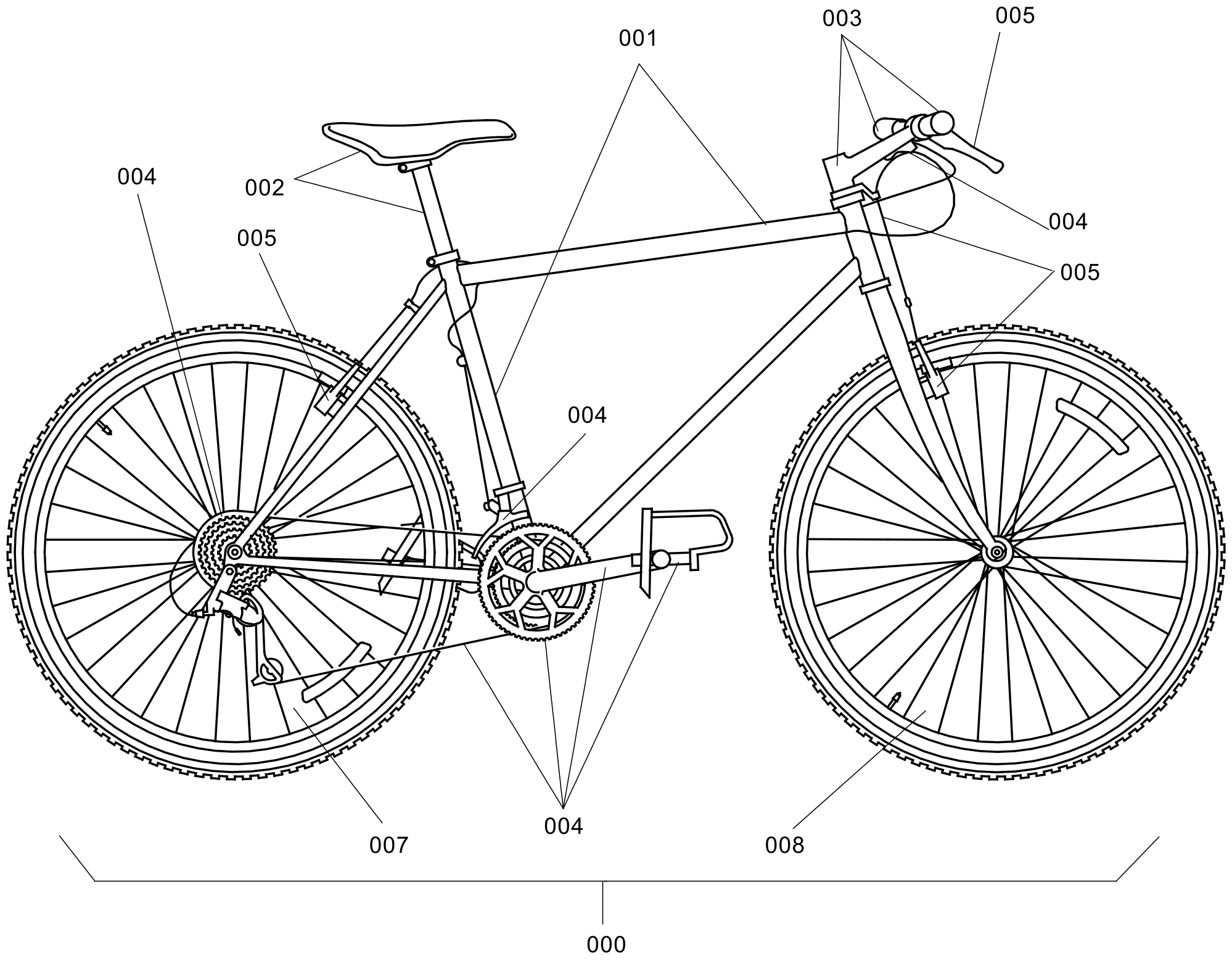

ICN-S1000DBIKE-AAA-D000000-0-U8025-00536-B-04-1

Fig 1 Bicycle

Initial provisioning project information

IPP number:	KZ9990001
IPP subject:	BICYCLE
IPP file identifier:	s

Catalog sequence numbers

Fig	Item	Units per assembly / Unit of issue	CAGE	Part No. NATO Stock No.	Description	🞷 Usable on code assy • MV/ Effect
01/A	0	REF	KZ999	BICYCLE-001	Bicycle	•MB
	1	1 / EA	KZ999	BICYCLE-001/1	• Frame assembly	•MB
	2	1 / EA	KZ999	BICYCLE-001/2A	• • Seat, assembly	•MB
	2	1 / EA	KZ999	BICYCLE-001/2B	• • Cruiser Seat, assembly	•MB
	3	1 / EA	KZ999	BICYCLE-001/3	• • Steering system	•MB
	4	1 / EA	KZ999	BICYCLE-001/4	• • Drive train system	•MB
	5	1 / EA	KZ999	BICYCLE-001/5	• • Brake sub-system	•MB
	6	1 / EA	KZ777	LRU1001	• • Light system	•MB
	7	1 / EA	KZ888	WH-001	• • Wheel, assembly rear	•MB
	8	1 / EA	KZ888	WH-002	• • Wheel, assembly front	•MB
	9	1 / EA	KZ888	CP-001	• • Computer	•MB
