Wheel
Description of how it is made
References
| Data module/Technical publication | Title |
|---|---|
| None | |
Description
1 |
The bicycle wheel |
|
The wheel (refer to Fig 1) of a bicycle is a complex structure. The wheel assembly has these parts:
|
|

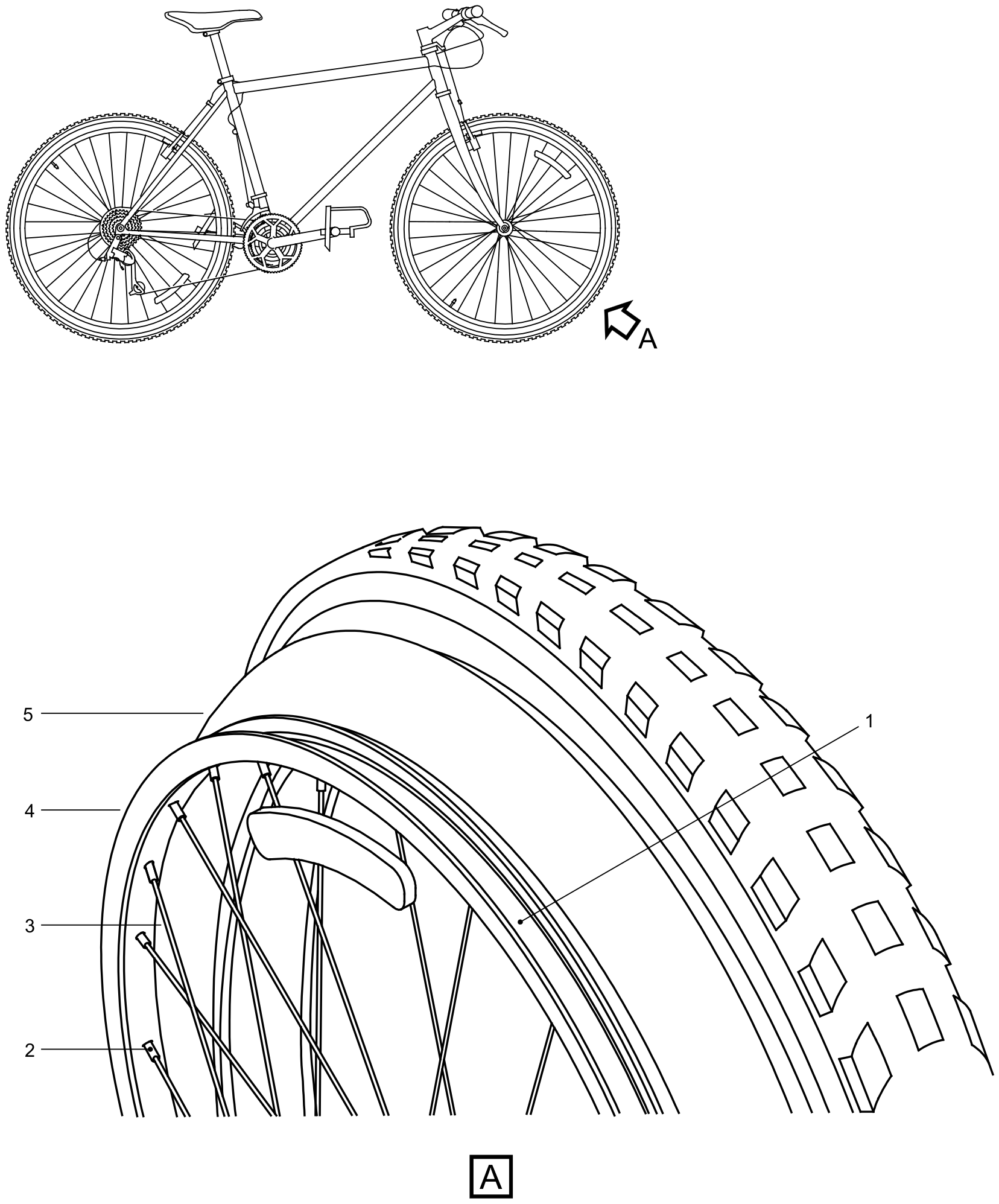

 ICN-S1000DBIKE-AAA-DA00000-0-U8025-00504-A-04-1 Fig 1 Parts of the wheel |
|
1.1 |
Spokes |
|
The spokes go out from the hub and go across and below each other. The spoke nipples
attach the spokes to the rim with the threads on the end of the spokes. You can use
the spoke nipples to adjust the tension of the spokes. The tension on each of the
spokes must be equal.
|
|
1.2 |
Wheel rim |
|
The rim (refer to Fig 2) of the wheel has a lining of rim tape. This tape protects the tube from damage that
the rough edges on the spoke nipples can cause.
|
|

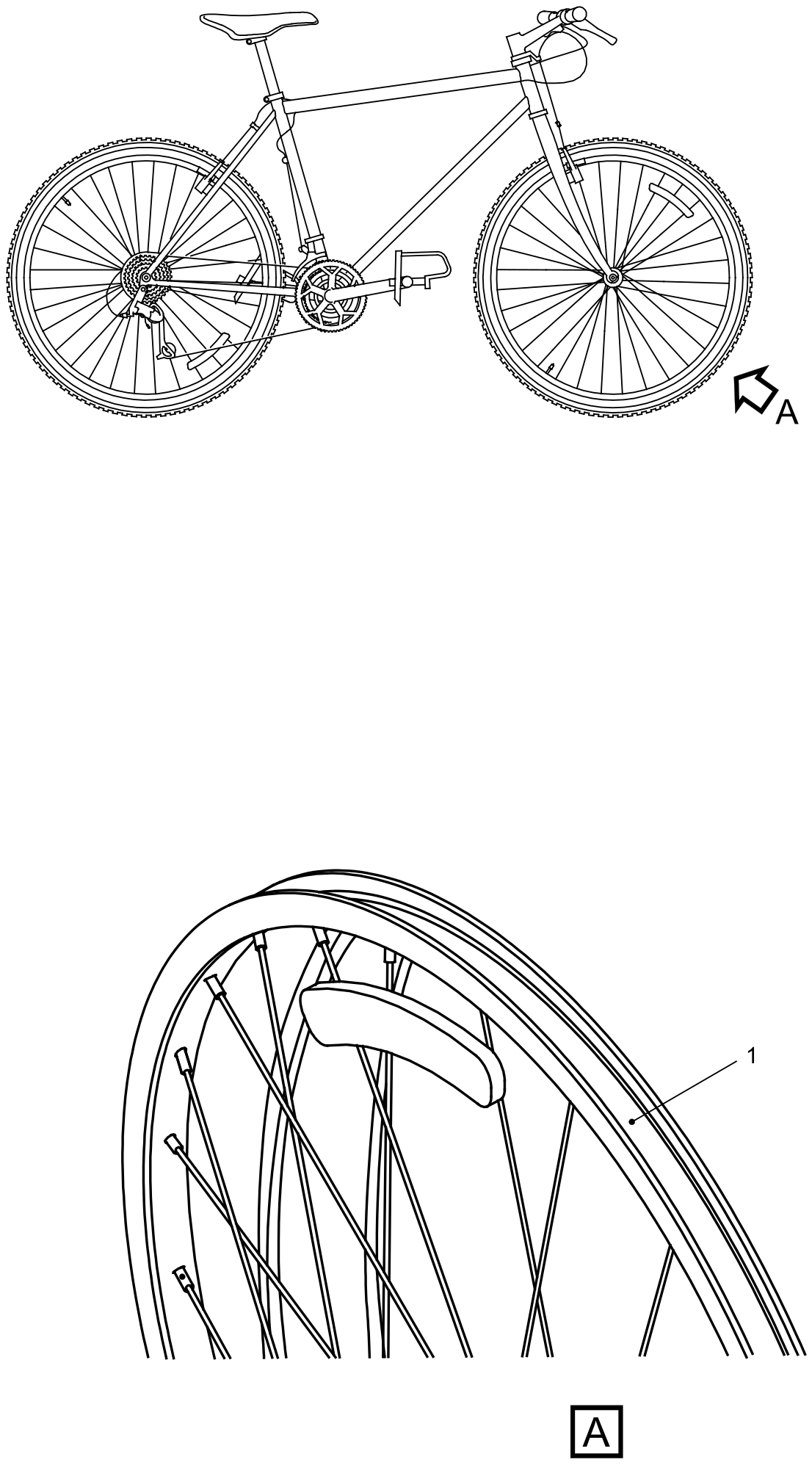

 ICN-S1000DBIKE-AAA-DA00000-0-U8025-00504-B-04-1 Fig 2 The tire and rim |
|
1.3 |
Tube and tire |
|
The tube and the tire install on the rim. The sidewalls of the tire have markings
on them. These which are used to indicate the correct direction of rotation. The markings
also make sure the tire installs on the rim and that the directional arrows points
in the correct direction. You install the tube into the tire before you inflate it.
The tube has a valve (refer to Fig 3) which you put through the hole in the rim. This valve (refer to Fig 3) is used to inflate the tube and the tire to the correct pressure. A dust cap installs
on the valve (refer to Fig 3) to prevent damage that dust and debris can cause.
|
|

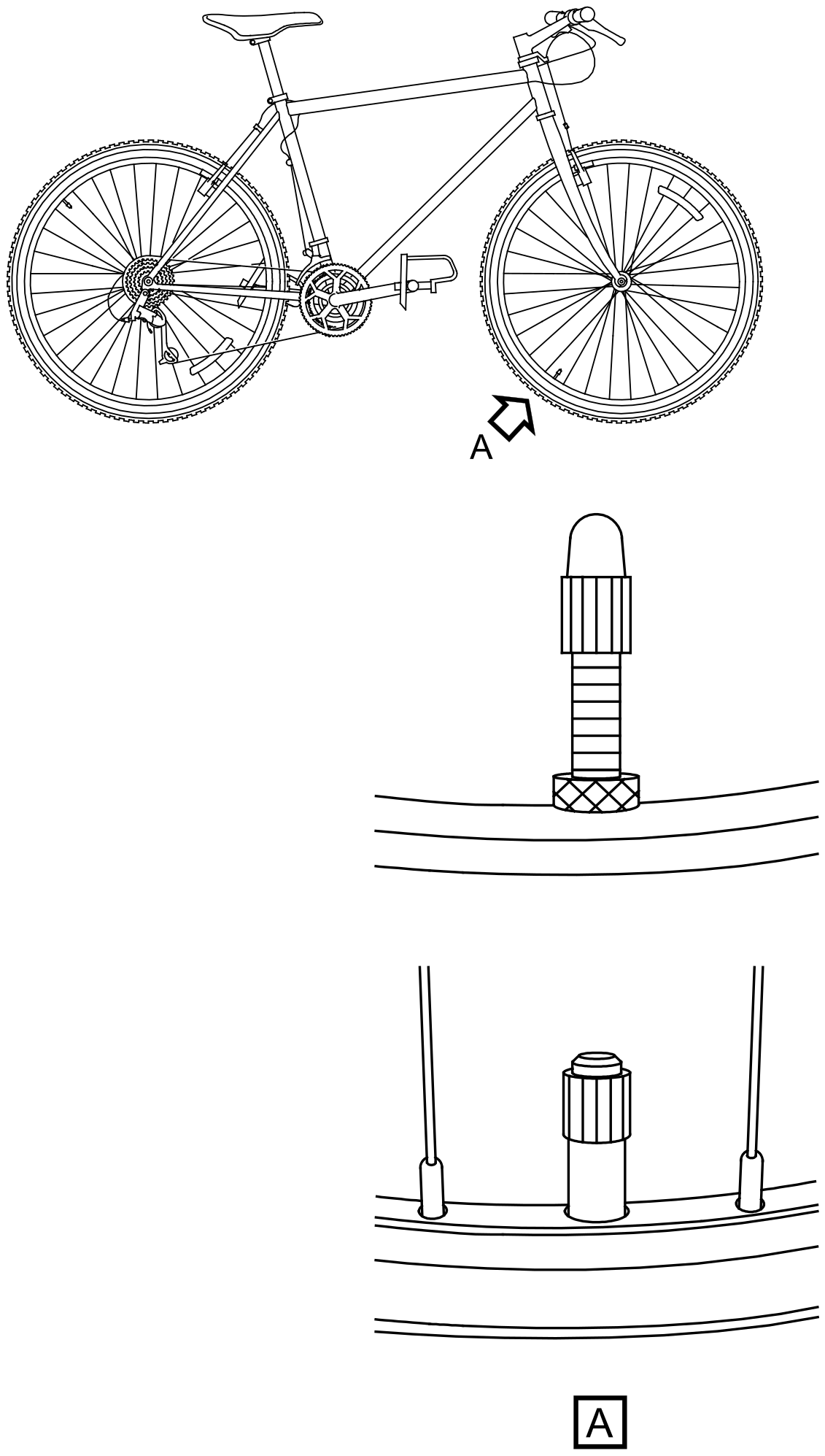

 ICN-S1000DBIKE-AAA-DA00000-0-U8025-00505-A-04-1 Fig 3 Valve |
